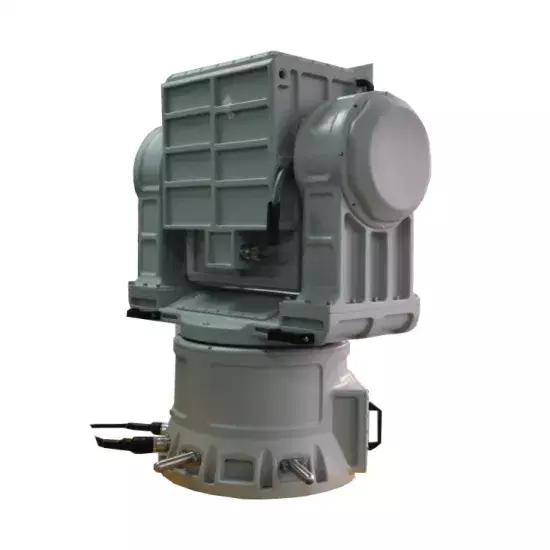

Border Surveillance Ultra Long Range Lrf PTZ Cooled Thermal Imaging Eoir Camera

Model NO. UPT501 Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 4 Km Sensor Size 1/3 inch Remote Control With Remote Control Visible Light Camera Detection Distance 10km Cooled Thermal Camera Detectiono Distanc Human: >16km, Vehicle: >25km HD Lens Focal Length 16.7~1000mm, 60X Continuous Zoom Day Light CCTV Camera Image Sensor 1/1.8′′progressive Scan CMOS Thermal Lens Focal Length 40-825mm Thermal Lens Control Electric Zoom, Motorized Focus, Autofocus Cooled Thermal Detector Effect Pixels 1280×1024 Optical Defog Support Video Format H.264/Mjpeg/MPEG4 Laser Lens Focal Length 100mmhd Focus Laser Lens Eo U Shape Pantilt Pan 360° Continuously Pan Speed 0.01°~200°/S Tilt Degree -45°~+90° Weight Less Than 250kg Input Voltage DC30V Transport Package Carton Specification 540mm× 343mm× 560mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Packaging & Delivery

Package Size 500.00cm * 500.00cm * 800.00cm Package Gross Weight 80.000kg

Product Description

Border Surveillance Ultra Long Range LRF PTZ Cooled Thermal Imaging EOIR Camera Product Description



Product Features 1. Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance 2. Cooled FPA Infrared detector with high temp sensitivity, with min temp resolution of 25mK 3. Day and night low illuminate 2.1MP color to black camera, day and night continuous monitoring 4. Auto focusing function, realizing multiple focusing mode and triggering mode 5. Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency 6. 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability 7. Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain 8.It can be equipped with Auto tracking Module, GPS, Electric compass, to realize interaction and auto tracking function.  Technical Specifications Operating distanceVisible light10kmThermal imagingobjecthuman(1.8m×0.5m)Vehicle(2.4m×6m)Detection distancemore than 16kmmore than 25kmRecognition distancemore than 8kmmore than 17kmIdentification distancemore than 3.5kmmore than 11kmHD lensFocal length16.7~1000mm, 60x continuous zoom,FOV25°~0.45°2x extenderSupport, to be 2000mmOptical DefogSupportWiper SupportAuto focusSupportCamera and video codingSensor type1/1.8" Progressive Scan CMOSColor ModeIntegrated ICR double filters switch day and nightShutter speedAuto and Manual controlTotal pixels2.1MPCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchPenetrate fogSwitch On/Off optionalWDRON/OFF optionalBLCON / OFF and regional optionsRegion of interestON / OFF and regional optionsBack trimming focus technologySupport remote adjustVideo formatH.265/H.264/MJPEGNoise reduction3D Digital noise reductionVideo resolution1080p,Tri-streaming supportVideo Bit Rate32Kbps~16MbpsSubtitles superimposedLogo, date, timeVideo frame rate50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720)Protocol   TCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNPSpecial featuresSupport heartbeat, covering video, password protectionVideo output interfaceHD,IP videoImage adjustmentBrightness, contrast, saturation, sharpness, etc.Thermal lensFocal length40-825mmFOV0.89°×0.71°~18.2°×14.6°IFOV0.012mradF value4Lens controlelectric zooming, motorized focus, autofocusCooled Thermal DetectorDetector typeCooled FPAEffective pixels1280×1024Pixel size10μmSpectrum3.7~4.8μmNETD≤[email protected],300KDetector MaterialHgCdTe FPA DetectorStart time≤7 minutes 30 seconds(25ºC)Non- uniformity correctionManual / Auto/Background CorrectionVideo formatPAL or NTSCFrame rate25HzImage processingDDE, pseudo colorLaser LensFocal length100mmHD focus laser lensCoating Multilayer near-infrared coatingPresetSupport precise potentiometer voltage feedbackFocus way3CAMAxis adjustingOutside MMALaser illuminatorPower20WWave length810nmLighting angle0.3°~20° continuous zoomLaser switchAuto/manualMQMMMQMM Micro lens wave guide fiber mixed modeEncapsulateSealed NitrogenHeat emissionArray Air-cooled heat emission, inside fanLaser range finderMax measurement distance20kmMin measurement distanceLess than 100mError±5mRe-frame rateMore than 12 times/ minEO U-Shape PantiltPan degree360° continuouslyTilt degree-45°~+90°SpeedPan  0.01°~200°/s, tilt 0.01°~200°/sPreset bits2048 points, Support lens zoom, focus presets & function presetsPreset precision±0.05°Auxiliary switch2 groupsAuto cruise2 line,64 presets each lineProtocolPelco-D, Pelco-P OptionalCommunication band rate2400/4800/9600/19200 bps OptionalData ProtocolTCP/IP, HTTP, DHCP, DNS, DDNS, RTP and other protocolsAnti-thunderPower 4 000V,Video signal 2000VInterfacePower supply interfaceDC30VFeedback of Pan/tilt location, angle dataSupportNetwork interface1×10Base-TX/100Base-TX,RJ45 for video output and IP controlAuto Tracking module (Optional)Feature   Programmable two axis platform drive control. (PID), support rate control, built-in tracking algorithms; Support OSD functionTracking AlgorithmCorrelative tracking algorithm, temple matching tracking algorithm, Color tracking algorithmMinimum target size3×6 pixelMaximum target size200×100 pixelMobile detection target number5InterfaceRS485, RJ45,GPSYesElectric compassyesSystem controlcontrol softwareYes, includingJoystick with keyboardYes, includingPhysical featuresWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Anti-salt fog GB/T2423.17-2008Whole machine power supplyDC30V,with AC90V~305V~DC30V/10A wide-range anti water power supplyWhole machine power consumption≤300WWhole machine weight≤250kgDimension≤1000x800x1000mm   After Sales Service



3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.  Company Profile



 4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. Certificate:
