Border Surveillance Camera PTZ Thermal

Model NO. SHR-PT500HLV3020HTIR185 Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Auto BLC Remote Control With Remote Control Visible Lens 12.5~750mm Visible Camera Low Lux IP Camera Thermal Camera Sensor 640*512 Thermal Lens 30~180mm, 6X Optical Zoom Pan/Tilt Big Speed Dome Pan Speed 0.01°~80°/S Tilt Speed 0.01°~60°/S Weight Less Than 80kg Power DC30V Output IP, RS422, DC30V Specification wooden box Trademark SHEENRUN Origin Shandong Jinan HS Code 8525801190 Production Capacity 1000

Packaging & Delivery

Package Size 70.00cm * 100.00cm * 70.00cm Package Gross Weight 80.000kg

Product Description

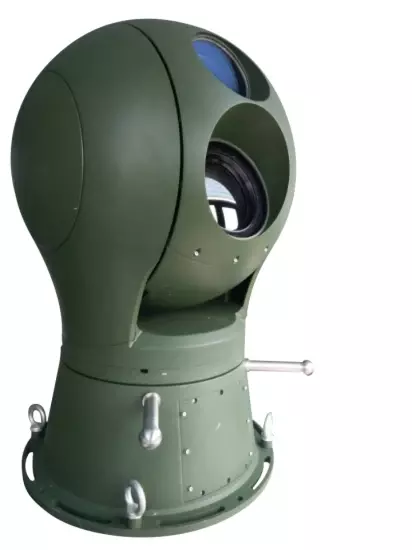

1.Introduction SHR-PT500HLV3020HTIR186R is With independent intellectual property rights night vision camera, it has two working model: daytime and night. Daytime adopts visible camera, night adopts thermal imaging camera and visible camera with laser illuminator. Thermal technology can be well hidden, good image quality, no need light.It can be used in total darkness,24/7h hours. The whole system, visible camera can see 6.5km, thermal can detect 5km human, realize day&night surveillance.

2. Features

Integrated design of remote visible light ad alarm thermal image dual-band camera, day and night 24hrs monitoring; Day& night low lux megapixel color& black camera, combined with thermal imaging for detail observation, can realize day and night continuous monitoring; Support visible lens and thermal lens' azimuth, focal length and focus position feedback in real-time; Adopt continuous zoom thermal imaging technology, with clear image and remote detection distance; Passive thermal imaging camera is with good concealment, not easy to be found; High precision Speed Dome Pan/tilt, High wind resistance, achieve a full range of blind angle monitoring, and achieved high precision positioning Rotary precision less than 0.01°,no backlash, rotate smoothly; Support line scanning, keep watching, cruising, positioning and other function; Professional shell design, beautiful, lightweight, rugged, high temperature resistance, corrosion resistance, waterproof, acid rain Built-in Nitrogen gas to protect inside cameras anti-humidity, long time using life Protection IP66;

DistanceVisible camera6.5km(can see human body action)Thermal cameraTargetHuman(1.8m×0.5m)vehicle(2.3 m×2.3 m)detect504014400recognize12603600identify6301800LensFocal length12.5~750mm,60x Fujinon lensAuto irisDC driveFOV0.5°~ 28.7°Optional itemsDefog,2x extenderFocus controlsupportFocusAuto/manualPresetSupport lens zoom and focus presetinterfaceC/CSCameraSensor1/1.8''Progressive Scan CMOSPixels2MPColor modeIntegration ICR double filter switch between day and nightShutter speedAuto/manualVideo controlAGC, AWB, support day/night mode switch auto/manualFog penetratingON/OFFWDRON/OFFBLCON/OFF and area optional Interested areaSupport ON/FF, area optionalBack focus adjusting techSupport, remote controlNoise reduction3D digitalCode typeH.264/MJPEG/MPEG4Resolution1080p,Video rate32Kbps~16MbpsFrequency50Hz:25fps(1920×1080),25fps (1280×720) 60Hz:30fps(1920×1080),30fps (1280×720)   Character addingCamera number, time, dateThermal lensFocal lenth30~180mm,6x optical zoomFOV3.5°×2.8°~17.2°×13.6°IFOV0.09~0.47mradSensorSensor typeUncooled VOxPixel640×512 Spectrum8~14μmNETD≤[email protected],300KFrequency25Hz/30HZCorrectionAuto/manual/back lightImage dealingDDEVideo outputPAL/NTSCRotaryPan360°Tilt-45°~+45°Pan speed0.01°~80°/sTilt speed0.01°~60°/sSpeedAt most 40°/s2Prest2048Precision±0.01°Auxiliary switch2Cruising2 line with 64 presets each lineAuto scan1 line, 1 line apple scanAuto backSupportProtocolPelco-D,Pelco-PBaud rate2400/4800/9600/19200 bpsSize605mm×605mm×1160mm(L×W×H) Anti-lightingPower 4000V,video signal2000VLoad capacity40kgInterfacePowerDC30VInternet1×10Base-T/100Base-TX,RJ45Video controlRS422,BNC,AlarmEnvironmental indicatorsOperation temperature -25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Salt fog proof PH6.5~7.2, Continuously spraying 48 hours PowerPower supplyDC30V,with AC90~305Vto DC30V/10A anti-water adapterConsumption≤180WPhysicsWeight≤80kgSize500mm×500mm×795mm(L×W×H) InstallationOutdoor base
