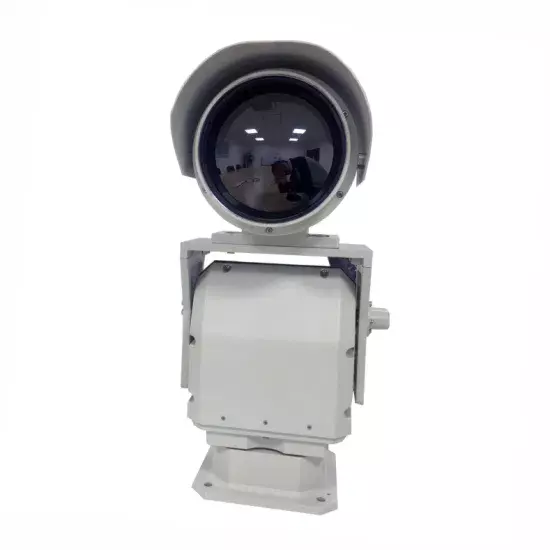

Border Defense 4X Zoom PTZ IP CCTV Surveillance Infrared Thermal Camera Price

Model NO. TIR104R Sensor Uncooled Fpa Detector HDMI Format 1080P Horizontal Resolution 384X288 Resolution Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Detection Distance Human: 2800m, Vehicle: 8000m Thermal Lens Focal Length 25~100mm, 4X Optical Zoom Thermal Lens F Value 1.0 Thermal Lens Control E-Zoom, E-Focus(Auto Focus Is Optional) Detector Type Uncooled Fpa Detector Detector Resolution 384X288, Pixel 17um Netd Less Than 50mk Image Process Dde, Pseudo Color Video Output PAL/NTSC Pantilt Preset 200 Protection Grade IP66 Transport Package Carton/Wooden Package Specification 265mmx180mmx432mm Trademark CZVZ Origin Shandong, China Production Capacity 1000set/Month

Product Description

Border Defense 4X Zoom PTZ IP CCTV Surveillance Infrared Thermal Camera Price   Features: > High resolution uncooled microbolometer infrared focal plane array, vox > 17um pixel, image quality fine, observe small target more clearly, further detection distance > high sensitivity, NETD can reach 50mK and frame at 25Hz > Image noise reduction processing, add DDE function;  output hot white/hot black/psudo color > Lower power consumption, quick start-up,stable performance, image clearly wih high uniformity > RS 485 interface control, analog video signal output > Simple operation, easy to use and maintain > Precision casting aluminum alloy shell, sealed and waterproof, nitrogen inside, anti-harsh environment, super long working lifetime.  Technical Data:                      Model                                                  SHR-TIR104RMonitoring distanceObjectHuman(1.8mx0.5m)Vehicle(2.4mx2.4m)Detection2800mm8000mmRecognition700mm2000mmIdentification350mm1000mmThermal lensFocal length25~100nm, 4x optical zoomFOV3.7°x 2.8° ~ 14.9°x11.2°F valueF1.0Lens controlE-zoom, E-focus(auto focus is optional)DetectorTypeUncooled microbolometer FPA detector (vox)Resolution384x288, pixel 17umSpectrum8-14umNETD≤50mKFrame rate25HzFFCAuto/manual/background correctionImage processDDE, pseudo colorVideo outputPAL/ NTSCPan-tiltLoad capacity18kgRotate angle Pan: 0°~360°; Tilt: +20°~-60°Rotate speedPan: 0.1°/s ~9°/s; Tilt: 0.1°/s ~ 4°/sPreset200Auto cruise8 paths, each has 10 presetsInterfaceRS422, RS485ProtocolPelco-D, Pelco-P optionalPower supplyAC 24V±20%, 50/60Hz; DC 28V±20%Power consumption≤80WProtection levelIP66Environmental indicatorsWorking temperature-25ºC~÷55ºCStorage temperature-40ºC ~÷65ºCAnti-VibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPhysical featuresWeight≤14kgSize(including sunshield cover)390mmx180mmx488mm (LXWXH)InstallationOutdoor base installation Application: It is widely used for the workshop monitoring, power station inspection, high speed railway,  road patrol, forest anti fire and coastal defense etc.             Package&Shipment:   Wooden / carton package means will be supplied to ensure the transport safety.   FAQ: Q: 1. Is sample order available?        Yes, we can accept the sample order for testing. Q: 2. Do you have the MOQ requirement?         The MOQ is 1 piece. Q: 3. Do you support technical supporting for the installation and operation?          Yes, we have professional technician to supply solution for you. Q: 4. What is the lead time?          It depends on the order quantity. Q: 5. How to ship the products?         For small order, it's usually shipped by express, like FEDEX, DHL, UPS or TNT etc.         For bulk order, it can be shipped as customer's need. Q: 6.What is the warranty for the product?        The warranty is 1 year. Q: 7. How about your after sale service?         Any problem about our product, please contact with us at any time. Q: 8. Do you accept the OEM product?          Yes, we can produce the product as customer requirement. Company Introduction: CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability. Certificate  The exhibition:   You may also like below products, pls click the picture for detail information.          HD Laser Night Vision Camera(HLV1020)                Dual Sensor Thermal Camera(HLV330IR5R)                           Intelligence Pan Tilt (SP5050)
