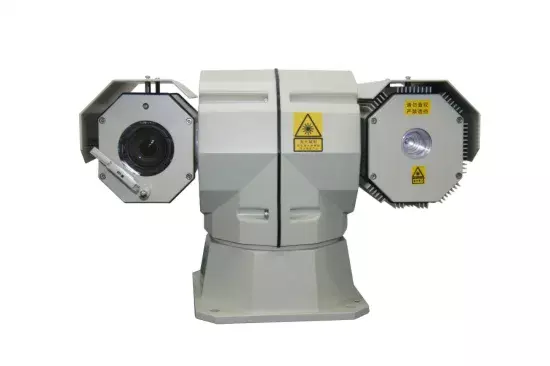

Airport 360 Degree Rotation 1000m Night Vision Laser CCTV PTZ IP Camera

Model NO. SHR-HLV535 Video Capture System Video Camera Video Transmission System Wireless Transmission Software Function Monitoring Software Usage Vehicle Monitoring Software, Computer Monitoring Software Client Software Client Software Model Surveillance Sensor CMOS Kind Autofocus Lens Technology Pan / Tilt / Zoom Horizontal Resolution 480tvl Protection Grade IP66 Thermal Lens F Value 1.0 Monitor Distance Thermal Camera 12km Pantilt Cruising Function 8 Paths Laser Illuminator Power 10W Thermal Lens Focal Length 30~150mm Remote Control Remote Control Visible Lens F=4.5~135mm Power Supply Interface DC12V Installation Method Outdoor Pedestal Mounting Transport Package Carton/Wooden Package Specification 240mmx500mmx243mm Trademark CZVZ Origin Shandong, China Production Capacity 1000piece/Month

Packaging & Delivery

Package Size 65.00cm * 38.00cm * 32.00cm Package Gross Weight 12.500kg

Product Description

Product Description

Product Features

Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black

Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring

MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition

Supporting fog penetration, backlight compensation, multistage wide dynamic

Optional auto focusing function, realizing multiple focusing mode and triggering mode

Supporting camera back focal length fine adjustment technology and camera remote debugging

Abundant network protocol and good network applicability, adapting all kinds of network environment

Cross pin type variable speed Pantilt, realizing all-round monitoring with high precision.

High-intelligence, easy to operate and maintenance.

Special rugged design, suitable for different kinds of vehicle and ships.

Low power consumption, generating a little heat, Stable performance.

Technical Data:

Model SHR-HLV535 Monitoring distance Night vision 800m Day vision 1100m Laser illuminator Power 5w Wave length 810nm Angle 0.7°-50° Even light MCIC Visible light camera Sensor 1/2.8" Progressive Scan CMOS Total pixels 2.1MP Lens 4.5~135mm, 30xoptical zoom Lens aperture F1.6-4.4 Min lux 0.05Lux (color), 0.01Lux (black and white) Camera control

Auto gain control, auto white balance, auto backlight compensation,

supporting manual and auto day and night mode switch

Video coding Coded format H.264 Video resolution 1920 x 1080 Bitrate 64Kbps-4Mbps Frame rate 1-25f/s(50Hz), 1-30f/s(60Hz) Subtitle overlay station logo, date, time Image adjustment brightness, contrast, saturability Supporting protocol

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP,

SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional)

Pan tilt Angle Pan 360° continuous, tilt -90° to +90° Speed Pan 0°-80°/s, tilt 0°-60°/s Presets 256 Cruising function 6 paths Interface Network interface 1×10Base-T/100Base-TX, RJ45 Power supply interface 1×DC 24V socket, for external power adapter Audio interface 1×Line In, 1×Line Out Alarm interface 1 switch input, 1 switch output Environmental indicators Work temp. -25ºC to +55ºC Storage temp. -40ºC to +65 ºC Protecting grade IP66 Anti-vibration 10-55Hz, 2m/s2, 0.75mm Anti-impact 150m/s2, 11ms Anti-salt fog After continuous spraying for 48 hours at PH 6.5-7.2, surface does not change Power supply Power DC 24V±5% /4.0A, please use appendant power Consumption ≤60W Physical features Size 240mm×374mm×243mm Weight 8Kg Application for various fields: safe city monitoring, forest fire-proof monitoring, high attitude monitoring, railway monitoring, harbor monitoring, oilfield monitoring, freeway monitoring etc. Company Profile

China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
