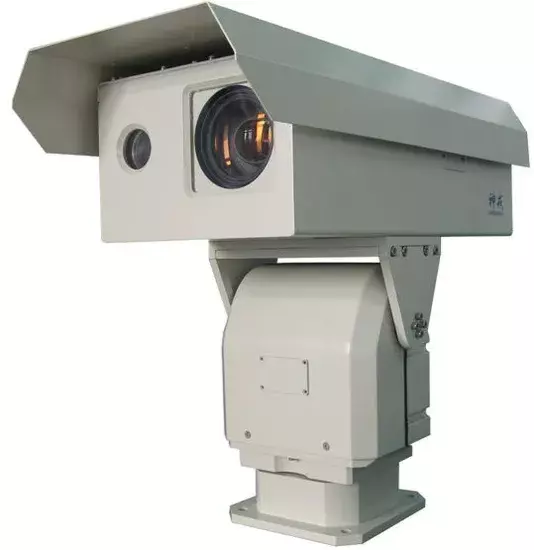

6km Infrared Laser Night Vision Security Surveillance Camera

Model NO. SHR-HLV3020 Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Auto BLC Effective Distance 2km at Day and 1km at Night Remote Control With Remote Control Lens Focal Length 12.5~750mm Camera Resolution 1920*1080, HD Network Camera Protection Grade IP66 Transport Package Wooden Cartons Trademark SHEENRUN Origin Shandong, China Production Capacity 1000

Product Description

SHR-HLV3020 HD Middle Range Night Vision Laser PTZ Camera Product features                                                                1.Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux  2.Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring 3.MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition  4.Supporting fog penetration, backlight compensation, multistage wide dynamic  5. Optional auto focusing function, realizing multiple focusing mode and triggering mode 6.Supporting camera back focal length fine adjustment technology and camera remote debugging  7.upporting long focal length speed limit and 3D locating function  8.Abundant network protocol and good network applicability, adapting all kinds of network environment 9.External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment  10.Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain Technical Indicators                                                      Monitoring distanceNight vision3000mDay vision6500mImaging lensFocal length12.5~ 750mmFOV0.5° ~28.7°Auto focusingSupporting(optional)Fog penetrationSupporting(optional)CameraSensor type1/1.8"Progressive Scan CMOSCoding modeH.264/MPEG4/MJPEGVideo resolution1080P,CIF,supporting three streamVideo bit rate32Kbps ~ 16MbpsVideo frame rate1 ~ 25F/S(50Hz),1 ~ 30F/S(60Hz)IlluminatorIlluminating lens60x zooming laser telephoto lensPower20WWave length810nmIlluminating angle0.3° ~ 18°continuous changingLight homogenizationMCIC homogenization technologyPan-tiltLoad50kg(top load)AngleHorizontal 360°continuous rotation,pitching -60° ~ +20°SpeedHorizontal 0.1° ~ 9°/s,pitching 0.1° ~ 4°/sPreset bits255 bits,supporting lens zooming and focusing memory,8 cruising pathsAuto cruising8 paths,10 preset bits each pathInterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC ~ +55ºC(-40ºC ~ +55ºC customized)Storage temp-40ºC ~ +65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,equipped with AC220V ~ AC24V/5A water proof power supplyWhole machine power consumption≤80WPhysical featuresWeight50kgInstallation methodOutdoor Based installation Main Use                                                              Frontier and coast defense,Border defense,Oilfields,Railway,Airports,Harbors,Armored monitoring,large areas real-time monitoring day & night.  Main ProductsWith 12 years experience, our products include PTZ/fixed laser night vision camera,PTZ cooled and uncooled thermal security system, Dual thermal and daylight camera, Three sensor camera with laser range finder.Our detect distance is from 200m to 30km.Application                                                             Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
