640X512 Ingaas Short Wave Infrared Fpa Detector Infrared Camera Detector

Model NO. 640X512 Short Wave Infrared FPA Detector Style Handheld Structure Thermal Core Kind Image Intensifier Night Vision Operation Principle Infrared Night Vision Shell Material Metal Customized Customized Detector Specifications and Pixel Center 640×512/15 μm Effective Pixel Rate ≥99.5% Response Rate Non-Uniformity ≤5% Spectral Response Range 0.9 μm-1.7 μm Full Frame Maximum Frame Rate ≥300Hz@8 Channels (Window: Above 1000Hz) Roic Read Noise 20e-@Hg Peak Quantum Efficiency ≥75%@1550nm Integral Mode Itr or Iwr Function Window Opening in Any Position, Internal CDS Package Form Metal Vacuum Encapsulation, Level 2 Tec Weight 17 Transport Package Safety Box and Cardboard Box Specification 640X512/15 μ m Trademark CZVZ Origin Shaanxi Province, China Production Capacity 100

Product Description

Product Description

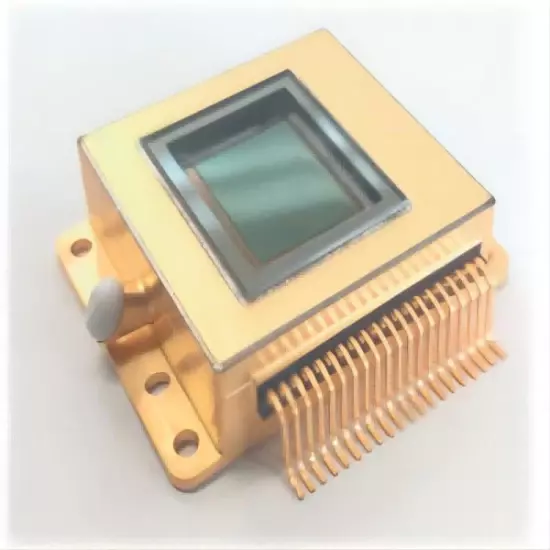

640×512/15μm InGaAs Short WaveInfrared FPA Detector

Application fields: It can be used in night vision imaging, border inspection security, industrial and agricultural inspection, satellite remote sensing, biomedicine, environmental monitoring, spectral analysis, astronomical observation, forest fire prevention, etc. Our Advantages

Product features: high quantum efficiency, high detection sensitivity, low readout noise, free window opening, metal tube and shell vacuum integrated package, work at room temperature and near room temperature.

Product Parameters

Main parameter

parameterIndexDetector specifications and pixel center distance640×512/15 μmeffective pixel rate≥99.5%Response rate non-uniformity≤5%Spectral Response Range0.9 μm-1.7 μm (scalable to 0.4μm response)Full frame maximum frame rate≥300Hz@8 channels (window: above 1000Hz)ROIC read noise20e-@HGpeak quantum efficiency≥75%@1550nmIntegral modeITR  or  IWRFunctionWindow opening in any position, internal CDSPackage formMetal Vacuum Encapsulation, Level 2 TEC, Weight 17g   Instructions

Digital 1280×1024/10μm InGaAs Short Wave Infrared FPA Detector

Application fields: short-wave infrared imaging, spectral analysis, etc., can be used for night vision imaging, border inspection security, industrial and agricultural inspection, satellite remote sensing, biomedicine, environmental monitoring, etc.Product features: Built-in 14/15bitADC, digital output, high quantum efficiency, high dynamic range, high detection sensitivity, metal tube shell vacuum integrated package, work at room temperature and near room temperature.The main parameters ParametersIndexDetector specifications and pixel center distance1280×1024/10μmEffective pixel rat≥99.5%Response rate non-uniformity≤6%Spectral Response Range0.9μm-1.7μmFull frame maximum frame rate≥60Hz@4 channelsQuantization bits14bit/15bitPeak quantum efficiency≥75%@1550nmDynamic Range≥80dBTypical peak detectability5×1012cm.√ Hz/WPackage formMetal vacuum pack with built-in TEC, weight 19g 1024×1/12.5μm/512×2/25μm InGaAs Short Wave Infrared LineScan Detector Application areas: industrial and agricultural testing, product sorting, spectral analysis, environmental monitoring, etc.Product features: multi-level gain, high line frequency, low temperature drift, high detection sensitivity, and work at room temperature.The main parameters ParametersSWL1024-ACMESWL512-ACMEDetector specifications and pixel center distance1024×1/12.5μm512×2/25μmBlind number≤5, no consecutive blind elements≤3 in a single row, no consecutive blind elementsResponse rate non-uniformity≤4%Spectral Response Range0.9μm-1.7μmThe highest line frequency of the whole frame≥35KHz@2 channelspeak quantum efficiency≥75%@1550nmIntegral modeITR or IWRFunctionInternal CDS, direction adjustment, 16-level gainPackage formMetal/ceramic package 640×512/15μm InGaAs Short Wave Infrared Camera It adopts InGaAs focal plane detector, two-stage TEC refrigeration, can open windows freely, and has target tracking function; it has the characteristics of strong fog penetration ability, high frame rate, rich interfaces, compact structure, and reliable performance. With excellent low noise design and TEC cooling design, the movement has very low dark current and high dynamic range, and excellent image quality. Application

Application fields: Infrared fog penetration observation and aiming, laser communication, laser detection, laser guidance, star sensitive observation, long-distance observation and aiming, night imaging, handheld/airborne/vehicle photoelectric load, forest fire prevention, moisture or icing detection, semiconductor detection, solar energy Battery board inspection, etc.Product Features: With tracking function, two modes of correlation tracking and centroid tracking can be selected, and the output of missing target has zero delay, which can be used for laser spot tracking, and the spot extraction accuracy is 0.2 pixels; Strong ability to penetrate fog;Professional image processing algorithm: adaptive contrast enhancement, onboard non-uniformity correction, automatic exposure/automatic gain control, image detail enhancement; Various frame rates are adjustable: the frame rate can be set arbitrarily, and external trigger and external pulse width control are supported;Support digital and analog video output at the same time: PAL/NTSC and CameraLink, PAL/NTSC and GIGE network port.Support dual digital video output at the same time: SDI and CameraLink, SDI and GIGE network port.The main parameters

Module Model  SW640C-ACME/G1.DetectorDetector specifications 640×512Pixel size15µmWavelength range0.9 ~ 1.7µmQuantum efficiency>70%Detector materialInGaAsDynamic Range≥70dBCooling methodTEC2 Cooling2.FunctionTarget TrackingCenter of mass tracking, correlation tracking, frame output of missed target, zero delay.ROI windowingWindows can be opened freelyFrame rate (full frame)1-60Hz can be set (up to 300Hz can be customized)Exposure time30uS-1S can be set arbitrarilyMirror imageHorizontal direction, vertical direction, diagonal directionImage ProcessingNon-uniform correction, blind pixel correction, contrast enhancement, detail enhancementExposure timeManual Exposure/Auto ExposureGain controlManual Gain/Auto GainProgram updateSupport online program update3.Environmental adaptabilityOperating temperature-45ºC~+ 70ºCStorage temperature-50ºC~+ 70ºC4.Electrical InterfaceInput voltage8-12VDCPower consumption≤4W@12V,  TEC offDigital video outputCameraLink/SDI/GIGE network port/CML/optical fiberAnalog video outputCVBS (PAL/NTSC system can be set)Communication InterfaceRS422/RS232/CAN Company Profile
