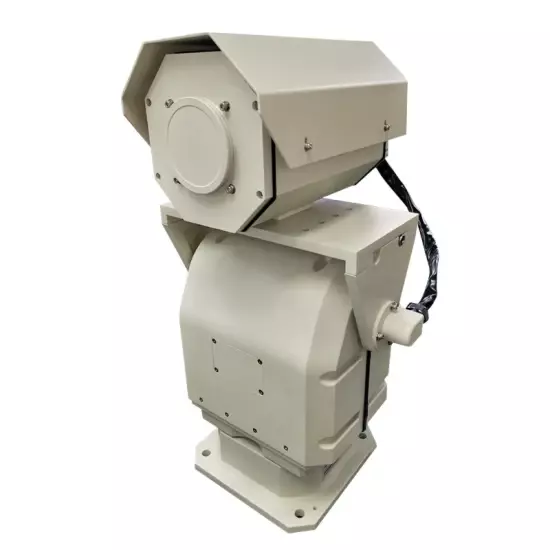

50mm Fixed Lens Thermal Imaging Night Vision Camera

Model NO. SHR-TIR 50 Sensor Uncooled Fpa Detector(Vox) HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 3.96 Km Sensor Size 1/3 inch Remote Control With Remote Control Thermal Lens 50mm Fov 12.4°×9.3° F Value 1.0 Pixel 640×512,Pixel 17µm Spectrum 8~14μm Netd ≤50mk Frame 25Hz Video Output PAL Power Supply DC12V Other Interface RS485,BNC Video Output Transport Package Box Specification 251mm× 115mm× 117mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Packaging & Delivery

Package Size 56.00cm * 45.00cm * 43.00cm Package Gross Weight 25.000kg

Product Description

Product Features

1.    640×512High resolution uncooled microbolometer infrared focal plane arrays,vox

2.     17µm super small pixel,image quality fine,observe small target more clearly,further detection distance

3.      High sensitivity, NETD can reach 50mk and frame at 25Hz

4.      Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color

5.      Low power consumption, quick start-up, stable performance, image clearly with high uniformity

6.      RS 485 interface control, analog video signal output(IP camera is optional)

7.      Simple operation,easy to use and maintain

8.      Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime

Specification Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)Detect distance1400m4000mRecognize distance350m1000mIdentification distance170m500mThermal lensFocal length25mmFOV12.4°×9.3°F1.0Lens controlElectronic zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)Pixel640x512/384×288,pixel 17µmSpectrum8~14μmNETD≤50mKFrame25HzNUCAuto/Manual/Background correctionImage processDDE,pseudo colorVideo outputPALInterfacePower supply interfaceDC12VOther interfaceRS485,BNC Video output (IP optional)Environmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12Vpower adapter)Power consumption≤8WPhysical featuresWeight≤1.8KgSize251mm×115mm×117mm(L×W×H,contain sunshield cover)InstallationOutdoor base install
