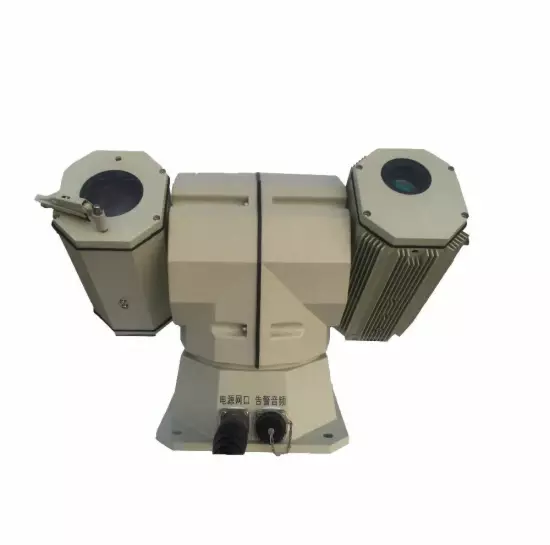

500m Short Range PTZ Laser Night Vision Camera

Model NO. SHR-HLV535 Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, CCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 3-13km Sensor Size 1/3 inch Remote Control With Remote Control Visible Lens 4.5~135mm, 30X Optical Zoom Day Vision Distance 1000m Pan/Tilt Angle 360 Degree Continuous, -90~+90 Degree Effective Range 500m Night Vision, 1000m Day Vision Night Vision Distance 500m HD Visible Camera 2.1MP, 1/2.8" CMOS Laser Illuminator 5W, 810nm Pan/Tilt Speed Pan 80 Degree/S, Tilt 60 Degree/S Transport Package Carton Case Specification thermal imaging camera Trademark CZVZ Origin Jinan Production Capacity 50sets

Product Description

Product Description SHR-HLV Series Short Range HD Laser Night Vision Camera Features:1.Using near-infrared source light,hidden,and not easy to be found2.Can be used in 0Lux total darkness3.Low illumination,day&night camera,realize day and night surveillance continuous4.Auto white balance, auto gain control, auto exposure control5.High performance video processing chip,H.264 video code, can provide millions of HD image6.Supports dual- video stream, compatible with various network environment7.Support ONVIF,GB/T28181,providing SDK, can dock with main monitoring platform8.Capture and Record, Support Web video browsing,provide access to NVR platform 9.Adopt high performance power supply solution,low power consumption, also suitable for solar power10.Professional designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain Product Parameters ModelSHR-HLV311SHR-HLV420SHR-HLV535DetectDistanceNight300m400m500mDay600m600m1000mHD CameraSensor Type1/2" Progressive Scan CMOSPixel2.1MPLens Focalf=4.7~94mm,20x optical zoomf=4.5~135mm,30x optical zoomIrisF1.6~3.5F1.6~4.4Lux0.05Lux(color),0.01Lux(white&black)Image ControlSupport AGC,AWB,BLC;Support Day&night conversion by manual and autoVideo CodeVideo FormatH.264Video Resolution1920x1080Code and Frame rateCode rate:64Kbps~4Mbps,Frame rate:1~25frame/s(50Hz),1~30frame/s(60Hz)Laser IlluminatorPower5wWave length810nmLighting Angle 2°~50°sychronous zoom1°~20°sychronous zoom0.7°~50°sychronous zoomBrightness BalanceLCMMMCICPan tiltAngle RangePan:360°continuous, Tilt: -90°~+90°Speed RangePan: 0°~80°/s, Tilt: 0°~60°/s,Preset Number256Cruising path6InterfaceVoltage 1*AC24VEthernet1*10Base-T/100Base-TX,RJ45EnvironmentTemp.Working Temp.-25ºC~+55ºC(-40ºC~+55ºC optional),Storage Temp.-40ºC~+65ºCProtection IP66Anti-Shock Anti-vibration:10~55Hz,2m/s^{2,0.75mm;Anti-impact:150m/s2,11ms}Anti-salt fog48 hours spraying continuously under PH 6.5~7.2Power SupplyVoltage InputAC24V±5%/3AConsumption≤60WPhysicsWeight8kgDimension240mm*374mm*243mm Effects
