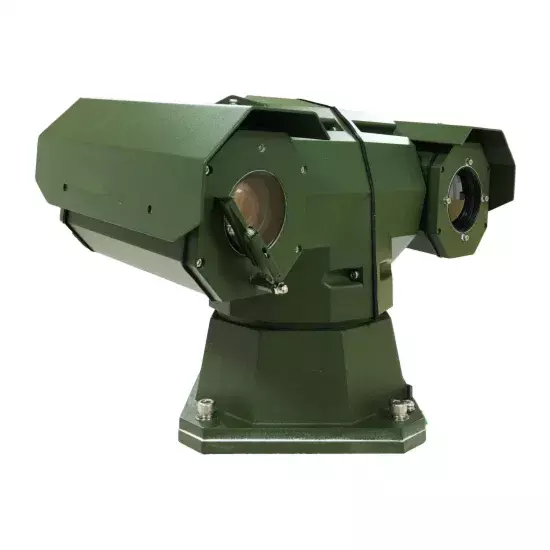

500m Radar Linkage Thermal Camera

Model NO. SHR-VLV330IR50 Sensor CCD HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, Vandal-proof Sensor Size 1/4 inch Remote Control With Remote Control Thermal Detection Distance 1400m for Human, 4000m for Vehicle Thermal Recognition Distance 350m for Human, 1000m for Vehicle Day Light Camera Distance 1000m Thermal Lens 50mm Thermal Detector 384X288 Uncooled Type Thermal Camera Frame Rate 25Hz Daylight Camera Lens 4.3-129mm, 30X Optical Zoom Presets 128 Protection Degree IP66 Weight 7.5kg Transport Package Carton / Wooden Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

1. Product Features                    * Integrating infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring * Adopting thermal imaging technology, not limited by light source, imaging clearly * Day and night low illuminance color camera, realizing details observing * High intelligence, simple to operate, easy to use and maintain * 3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability * Universal variable speed pan-tilt, omni-directional no blind angle monitoring and high precision locating 2. Technical Specifications Monitoring distanceDay cameraRecognition distance to human 1000mThermal cameraobjecthuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection1400m4000mRecognition350m1000mThermal  cameraDetector typeUncooled FPA Effective pixels384×288Spectral range8~14μmNETD≤5[email protected],300KLens Focal length 50mm(athermalization)FOV7.5°× 5.6°Frame rate25HzLens controlElectric focusing(auto focus optional)Image processDDE, pseudo colorHD day cameraSensor type1/2.8" Progressive Scan CMOSTotal pixels2MPLens focal lengthf=4.5~135mm, 30X optical zoomingCamera controlAuto gain control, auto white balance, auto backlight compensation, day/night mode switch manual/autoCoding formatH.264/H.265Video resolution1920x1080Video frame rate50Hz: 1~25fps(1920×1080); 60Hz: 1~30fps(1920×1080)Image adjustmentbrightness, contrast ratio, saturationPan-tiltAnglePan: 360°continuously, tilt: -90°~+90°speedHorizontal 0°~ 80°/s, tilt 0°~ 60°/sPresetsMax 256Cruising6 cruising paths, 20 presets each pathAnti-lightningTVS 6000VInterfacePower supply interfaceDC12VNetwork interface1×10Base-T/100Base-TX, RJ45Other interfaceRS485, BNC video outputEnvironment indicatorsOperation temp-25°C~+55°CStorage temp-40°C~+65°CAnti-salt fogContinuous spraying for 48 hours at PH 6.5-7.2,surface no changeProtection gradeIP66Power supplyPower supplyDC12V, with wide range water proof power adapterPower consumption≤30WPhysical featuresDimensions218mm×374mm×243mm(L×W×H)Weight7.5kgInstallation methodOutdoor base mounting 3. Company Introduction CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed laser night vision camera and uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached standard level. 4. FAQ

(1)  Is your company a manufacturer?      Yes. China CZVZ manufactures thermal camera, laser camera and multi-    sensor camera since 2004.

(2) What is the price?

      Please kindly send me the specificatons or application details and then we will  send you suitable camera's demo video, specifications and price.

(3) What is your warranty?

   We generally offer one year warranty. Extended warranty is also available.

(4) Does your company offer customized products?

   Yes.

(5) Does your company accept OEM?

   Yes.
