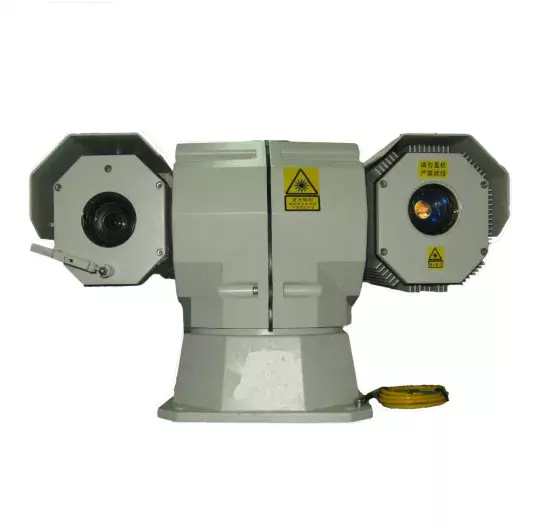

500m HD IP PTZ Laser Night Vision Camera (SHR-HLV535)

Model NO. SHR-HLV535 Sensor CMOS HDMI Format 1080P Horizontal Resolution 600tvl Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC Effective Distance 500m Night, 1000m Daytime Sensor Size 1/2.8" Remote Control With Remote Control Monitoring Distance 500m at Night, 1000m at Daytime Lens 4.5~135mm, 30* Optical Zoom Resolution 1920*1080 Laser Illuminaotr 5W Laser Wavelength 810nm Power Consumption 60W Size 240*374*243mm Weight 8kg Camera Tyep Laser Night Vision Camera Other Name Vehicle Mounted Camera Transport Package Wooden Case Specification CE, FCC Trademark SHEENRUN/OEM Origin China Production Capacity 500 PCS/Month

Product Description

1. Product Features

(1) Adopting laser illuminating system, far illuminating distance, wide illuminating range, can monitor in 0Lux completely black

(2) Day&night low light megapixel color to black camera, day&night continuous monitoring

(3) Auto white balance, auto gain control, auto exposure control

(4) High performance video processing chip and H.264 high efficiency video code, providing millions of high definition video image

(5) Dual stream function, small time delay, fully satisfying different network bandwidth

(6) Fully supporting ONVIF,GB/T28181,providing SDK, can dock with main monitoring platform home and broad

(7) Motion detection and alarm linkage, providing intelligent video monitoring application

(8) Capturing and videoing, supporting WEB browsing video, provide access to NVR platform to conduct parameter configuration and operation state management

(9) Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supplying mode such as solar power

(10) Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain 2. Technical Specifications

Monitoring distanceNight vision500mDay vision1000mCameraSensor1/2.8" Progressive Scan CMOSTotal pixels2.1MPLens focal lengthf=4.5~135mm,30* optical zoomLens apertureF1.6~3.5Min light0.05Lux(color),0.01Lux(black and white)Electronic shutter speedAuto and manual adjustmentCamera controlAuto gain control, auto white balance, auto backlight compensation; supporting manual and auto day and night mode switchVideo coding   coded formatH.264Video resolution1920x1080Bit rate64Kbps~4MbpsFrame rate1~25F/S(50Hz),1~30F/S(60Hz)Subtitle overlaystation logo, date, timeImage adjustmentbrightness, contrast, saturabilitySupporting protocolTCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional)IlluminatorPower5wWave length810nmIlluminating angle2°~50°synchronous servo continuous adjustmentHomogeneous lightLCMM homogenous technologyPan-tiltAngleHorizontal 360°continuous rotation,pitching:-90°~+90°SpeedHorizontal 0°~80°/s,pitching 0°~60°/sPreset bitMax 256Cruising function6 pathsInterfaceNetwork interface1×10Base-T/100Base-TX,RJ45Power supply interface1×AC 24V socket,for external power adapterAudio interface1×Line In,1×Line OutAlarm interface1 switch input,1 switch outputEnvironmental indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65 ºCProtecting gradeIP66Anti-vibration10~55Hz,2m/s²,0.75mmAnti-impact150m/s^2,11msAnti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2,surface with no changesPower supplyWorking power supplyAC 24V±5% /2.5A,please use the appendant power supplyPower consumption≤60W          Physical          featuressize240mm×374mm×243mmWeight8Kg            OthersApplication functionReal time clock;supporting manual capturing image and manual videoingConfigurationSupporting configuration management and videobrowsing through WEB;Provide access to platform(NVR) to conductparameter configuration and operating state management,supporting ONVIF2.0,GB28181 Company Photos Demo Video
