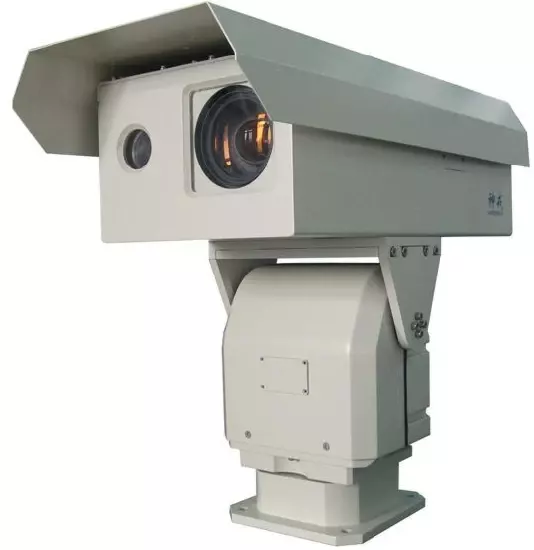

500m & 1000m Distance Laser Night Vision Camera

Model NO. SHR-LV500 Sensor CCD Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance Night 500m, Day 1000m Remote Control With Remote Control Forest Camera Human Detection Shrimp Camera Fish Camera Transport Package Wooden Case/Carton Specification CE, FCC Trademark SHEENRUN/OEM Origin China HS Code 8525 Production Capacity 500 PCS/Month

Product Description

  Description Adopt sync zoom laser IR illuminator system,illuminate far with large scopeSmart shell with professional design,light,firm,high temperature resistance,anti-corrosion, waterproof and acid rain proof External MMA micro-adjusting mechanism,no need to remove cover to finish laser alignment adjustment Support telephoto limiting-velocity&3D locate function Support fog penetrating,backlight compensation,multistage WDR MCIC light homogenization technology,no speckle&Crape ring phenomenon,high marginal definition Day and night type low illumination level color to black camera,to realize monitoring around the clock ,can realize monitoring at 0Lux Technical Indicators  Effect distance500M at night, 1000M at daytimeInfrared Camera1. Power: 4W 2. wave length: 810nm 3. illuminating angle: 1~17°; continuous changing 4. light uniformity: MQMM fiber mixed modelLaser lens1. 20mm laser lens 2. F 2.0Laser power1. Two circuits drive 2. stable voltage and stable current 3. power on for 1sImaging components1. 1/3'' infrared enhancement CCD 2. Integrated ICR double filters switch day and night; color/black white/automatic/outside control adjustable 3. pixel:752X582 4. resolution: color 540 lines, black & night 600 lines 5. illumination: 0.02lux (color), 0.0009lux (black white)Imaging Lens1. Focal length: 11~200mm, 18X 2. F: 1.9~360 3. FOV: 32.1~1.9°Intelligent simultaneously controlSSZ intelligent control independent adjusting laser illuminatorAxis adjusting structure1. Adjust: MMA Outside, presetting windows 2. Precision: 0.01°Cover1. high precision aluminum alloy shell 2. window glass: microlite optical glass 3. multilayer AR film 4. PTA dope 5. IP66Power supplyAC220V±10%Consumption weight1. Total power consumption: 50W 2. weight (including pan-tilt): 18.5kgInterface1. Control: RS485 Controlling signal 2. Power supply: AC220V 3. BNC video outputEnvironmental indicator1. Working temperature: -25ºC~+55ºC 2. Storage temperature: -40ºC~+65ºC 3. Humidity: <90% 4. Anti-vibration: 15m/s2 5~200Hz 5. Anti-impact: 150m/s2 11ms 6. Anti- saltfog: continuously spraying for 48hours under PH of 6.5~7.2Pan-tilt decoder1. Load weight: 17kg 2. rotate 360° horizontally, up and down +10°~-60° 3. speed: 0.1°~9°/s horizontally; 0.1°~4°/s vertically 4. 50 presetting bits 5. 1 tracking paths 6. IP66 7. PELCO D/P; baud rate optional Company Photos  5 FAQ

(1)  Is your company a manufacturer?CZVZ is professional manufacturer on thermal camera, laser night camera and camera system established in 2004.

(2) What is the price?

    Price is different according to your different requirements. We may talk on exact product model with your detailed requirements.

(3) What is your warranty?

   Generally free warranty for one year. Warranty period can be discussed.

(4) Does your company offer customized products?

   Yes. CZVZ's advantage is for customization products.

(5) Does your company accept OEM?

   Yes. OEM & ODM or other acceptable way for cooperation.



Main UseCoast and frontier defense, border, Military, airplanes, ships, armored monitoringFireproofing of woods, long distance of night monitoring at harbors, oilfields, etc
