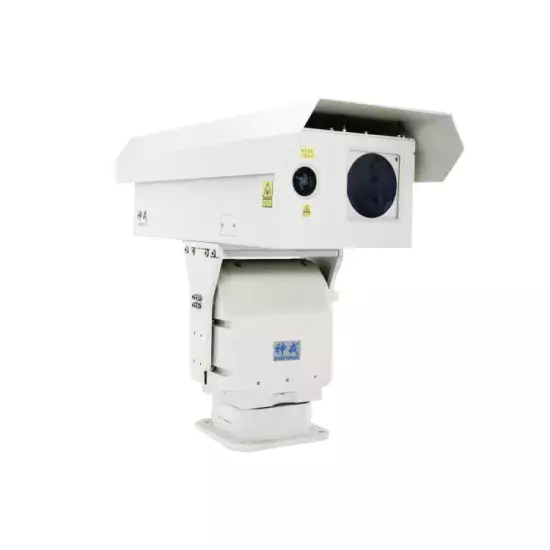

3km HD PTZ Day Night Infrared Outdoor Laser Camera for Perimeter Monitoring

Model NO. SHR-HLV1520 Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance Night Vision 1.5km, Day Vision 3km Sensor Size 1/1.8" Remote Control With Remote Control Monitoring Distance 1.5km at Night, 3km at Daytime Lens 15.6~500mm,32× Optical Zoom Pixel 2.1 Mega Pixel IP IP66 Certificate Ce FCC Category Laser Night Vision Camera Weight 25kg Transport Package Standard Exporting Package Specification 590× 260× 490mm Trademark SHEENRUN Origin China Production Capacity 1000 Units / Month

Packaging & Delivery

Package Size 65.00cm * 40.00cm * 40.00cm Package Gross Weight 35.000kg

Product Description

1. Product features

• Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black

• Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring

• MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition

• Supporting fog penetration, backlight compensation, multistage wide dynamic

• Optional auto focusing function, realizing multiple focusing mode and triggering mode

• Supporting camera back focal length fine adjustment technology and camera remote debugging

• Supporting long focal length speed limit and 3D locating function

• Abundant network protocol and good network applicability, adapting all kinds of network environment

• External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment

• Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain 2. Technical Specifications

Monitoring distanceNight vision1500metersDay vision3000metersImaging lensFocal length15.6~500mmFOV0.8°~24.7°Auto focusingsupporting(optional)Fog penetrationsupporting(optional)CameraSensor type1/1.8"Progressive Scan CMOSCoding mode   H.264/MPEG4/MJPEGVideo resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25F/S(50Hz),1~30F/S(60Hz)IlluminatorIlluminating lens60* zooming laser telephoto lensPower10WWave length810nmIlluminating angle0.5°~30°continuous changingLight  homogenizationmulti-tube core fusion mixed mode light homogenization technologyShieldMaterialPrecise casting aluminum alloyWindow glass4mm crystallite super white optical glassPan-tiltCarrying capacity22kg(top load)AngleHorizontal 360°continuous rotation,pitching -60°~+20°SpeedHorizontal 0.1°~9°/s,pitching 0.1°~4°/sPreset bits255 bits,supporting lens zooming and focusing memory,8 cruising pathsAuto cruising8 paths,10 preset bits each pathAnti-lightning2000VInterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/5A water proof power supplyWhole machine power consumption≤120WPhysical featuresWeight25kgInstallation methodoutdoor pedestal mounting 3. Company Intruduction

CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is one of the largest manufacturer of long range thermal imaging camera and laser night vision camera, as well as a supporting construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation,  developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera  withindependent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging  technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.

  4. Our Service

(1)  We generally offer one year warranty.  Extended warranty is also available.

(2)  We accept OEM.

(3) Life-long technical support. Professional technical team and salesperson help you with troubleshooting via Internet and Phone any time.

(4) Door-to-door service if necessary.

(5) Outside color of the produt  can be customized. 5.  FAQ

(1)  Is your company a manufacturer?      Yes. CZVZ is a manufacturer of  thermal camera and laser camera since 2004.

(2) What is the price?     Please kindly tell us your required specificatons or application details such as monitoring/ detection distance, then we will offer suitable      cameras with quotation.(3) What is your warranty?      We generally offer one year warranty. Extended warranty is also available.

(4) Does your company offer customized product?       Yes.

(5) Does your company accept OEM.      Yes.
