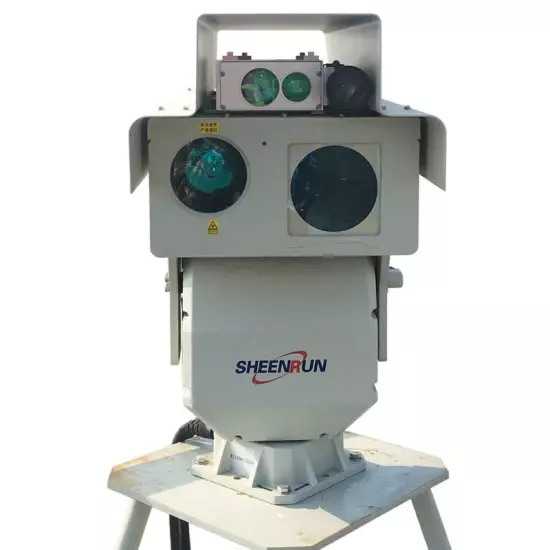

3km Harbor Seaport Traffic Monitoring PTZ Laser Night Vision Camera

Model NO. SHR-HLV3020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Auto / Manual Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 3000m Night Vision, 6500m Day Vision Sensor Size Same as Lens Size Remote Control With Remote Control Focal Length 12.5-750mm, 2X Extender Can Be 25-1500mm Fov 0.5°-28.7° Auto Focus Support Fog Penetration Auto Focus Video Resolution 1080P, CIF, Supporting Three Data Rates Video Bitrate 32kbps-16Mbps Transport Package Wooden/Carton Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 2000 Units / Month

Product Description

Main features 1. Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black 2. Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition 3. Supporting fog penetration, backlight compensation, multistage wide dynamic 4. Optional auto focusing function, realizing multiple focusing mode and triggering mode 5. Supporting camera back focal length fine adjustment technology and camera remote debugging 6. Supporting long focal length speed limit and 3D locating function 7. Abundant network protocol and good network applicability, adapting all kinds of network environment 8. External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment 9. Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain  Technical data   Monitoring distance Night vision 2000meters Day vision 5000meters Laser illuminator Illumination lens 100mm zoom laser telephoto lens Power 15W Wave length 810nm Illuminating angle 0.3°-18°continuous change Even light MCIC even light technology Imaging lens Focal length 20-750mm FOV 0.5°-17.8° Auto focus Support (optional) Fog penetration Support (optional) Visible light  Camera Sensor 1/1.8" Progressive Scan CMOS   Coding mode H.264/MPEG4/MJPEG Video resolution 1080P, CIF, supporting three data rates Video bitrate 32Kbps-16Mbps Video frame rate 1-25f/s(50Hz), 1-30f/s (60Hz) Shield Material Precision casting aluminum alloy Window glass 4mm crystallite ultra clear optical glass Pan-tilt Load capacity 50kg(top mount) Angle Pan 360°continuous, tilt -45° to +45° ( optional -60° to +20°)  Speed Pan 0.01°-12°/s, tilt 0.01°-8°/s Presets 255, supporting lens zoom focus presets Auto cruising 8 paths, 10 presets each path Anti-lightning 2000V Interface Power supply interface DC24V Network interface 1×10Base-T/100Base-TX, RJ45 Environment indicators Operation temperatue -25ºC to +55ºC Storage temperature -40ºC to +65ºC Protection grade IP66 Power supply Power supply DC24V±10%,appendant AC220V-DC24V/5A water proof power supply Power consumption ≤150W Physical features Weight 50kg Installation method outdoor base mounting Laser camera series <<< -- Choose the models best for you -- >>> Effect demo Application    CZVZ products are widely used for outdoor surveillance such as oilfield monitoring, city monitoring project, frontier defense, shipboard / seaport / railway / highway / airport / reservoir / tourist sites monitoring etc.   Package & Delivery

>>> Package

Standard Wooden or Carton cases

>>> Delivery

7-20 days after order confirned, detail delivery should be decided according to  production season and order quantity.
