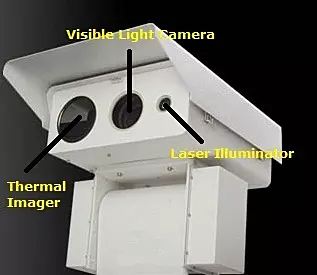

360 Degree Rotation Outdoor Security Thermal Camera

Model NO. FS-UL1620R165-HD Video Capture System Video Camera Video Transmission System Wireless Transmission Software Function Monitoring Software Usage Vehicle Monitoring Software, Computer Monitoring Software Client Software Client Software Model Surveillance Sensor CMOS Kind Autofocus Lens Technology Pan / Tilt / Zoom Horizontal Resolution 480tvl Protection Grade IP66 Thermal Lens F Value 1.0 Monitor Distance Thermal Camera 12km Pantilt Cruising Function 8 Paths Laser Illuminator Power 10W Thermal Lens Focal Length 30~150mm Remote Control Remote Control Transport Package Carton/Wooden Package Specification 240mmx374mmx243mm Trademark CZVZ Origin Shandong, China Production Capacity 1000piece/Month

Product Description

Product Description



Product Features

• Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black

• Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring

• MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition

• Supporting fog penetration, backlight compensation, multistage wide dynamic

• Optional auto focusing function, realizing multiple focusing mode and triggering mode

• Supporting camera back focal length fine adjustment technology and camera remote debugging

• Supporting long focal length speed limit and 3D locating function

• Abundant network protocol and good network applicability, adapting all kinds of network environment

• External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment

• Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain



Monitoring distance

Night vision

3100 meters

Day vision

5100m-8100 meters

Imaging lens

Focal length

20~750mm

FOV

0.5°~17.8°

Auto focusing

Supporting(optional)

Fog penetration

Supporting(optional)

Camera

Sensor type

1/1.8" Progressive Scan CMOS

Coding mode

H.264/MPEG4/MJPEG

Video resolution

1080P, CIF, supporting three streams

Video bit rate

32Kbps~16Mbps

Video frame rate

1~25F/S(50Hz),1~30F/S(60Hz)

Illuminator

Illuminating lens

60* zooming laser telephoto lens

Power

15W

Wave length

810nm

Illuminating angle

0.3°~30°continuous changing

Light homogenization

multi-tube core fusion mixed mode light homogenization technology

Shield

Material

Precise casting aluminum alloy

Window glass

4mm crystallite super white optical glass

Pan-tilt

Carrying capacity

50kg (top load)

Angle

Horizontal 360°continuous rotation, pitching -45°~+45° (-60°~+20° optional)

Speed

Horizontal 0.01°~12°/pitching 0.01°~8°/s

Preset bits

255 bits, supporting lens zooming, focusing and preset bits

Auto cruising

8 paths,10 preset bits each path

Anti-lightning

2000V

Interface

Power supply interface

AC24V

Network interface

1×10Base-T/100Base-TX, RJ45

Environment indicators

Working temp

-25ºC~+55ºC

Storage temp

-40ºC~+65ºC

Protection grade

IP66

Power supply

Whole machine power supply

AC24V±10%, appendant AC220V~AC24V/5A water proof power supply

Whole machine power consumption

≤150W

Physical features

Weight

50kg

Installation method

outdoor pedestal mounting

  Company Profile



Effect photos:  Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.
