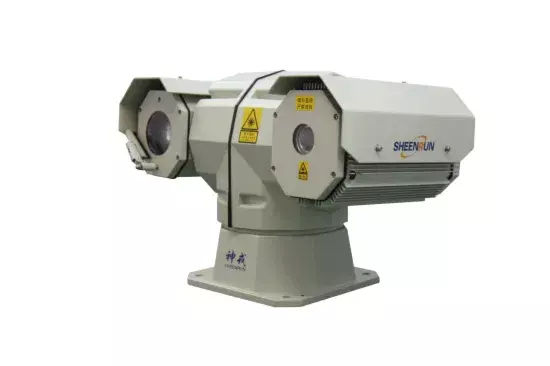

300m Night Vision and 600 Day Vision IR Laser PTZ Camera

Model NO. SHR-HLV311 Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Sensor Size 1/3 inch Remote Control With Remote Control Day Vision 600m Night Vision 300m Sensor Type 1/2.8" Progressive Scan CMOS Focal Length F=4.7~94mm,20* Optical Zooming Coded Format H.264 Video Resolution 1920X1080 Illuminator Power 5W Laser Wave Length 810nm Pan 360 Degree Rotate Continously Tilt -90 Degrees ~ 90 Degrees Transport Package Carton Box Specification 540mm× 500mm× 360mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

  Monitoring distanceNight vision300metersDay vision600metersCameraSensor1/2.8" Progressive Scan CMOSTotal pixels2.1MPLens focal lengthf=4.7~94mm,20* optical zoomingLens apertureF1.6~3.5Min light0.05Lux(color),0.01Lux(black and white)Electronic shutter speedAuto and manual adjustmentCamera co ntrolAuto gain control, auto white balance, auto backlight compensation; supporting manual and auto day and night mode switchVideo coding coded formatH.264Video resolution1920x1080Bit rate64Kbps~4MbpsFrame rate1~25F/S(50Hz),1~30F/S(60Hz)Subtitle overlaystation logo, date, timeImage adjustmentbrightness, contrast, saturabilitySupporting protocolTCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional)IlluminatorPower5wWave length810nmIlluminating angle2°~50°synchronous servo continuous adjustmentHomogeneous lightLCMM homogenous technologyPan-tiltAngleHorizontal 360°continuous rotation,pitching:-90°~+90°SpeedHorizontal 0°~80°/s,pitching 0°~60°/sPreset bitMax 256Cruising function6 pathsInterfaceNetwork interface1×10Base-T/100Base-TX,RJ45Power supply interface1×AC 24V socket,for external power adapterAudio interface1×Line In,1×Line OutAlarm interface1 switch input,1 switch outputEnvironmental indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65 ºCProtecting gradeIP66Anti-vibration10~55Hz,2m/s2,0.75mmAnti-impact150m/s2,11msAnti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2,surface with no changesPower supplyWorking power supplyAC 24V±5% /2.5A,please use the appendant power supplyPower consumption≤60W          Physical          featuressize240mm×374mm×243mmWeight8Kg            OthersApplication functionReal time clock;supporting manual capturing image and manual videoingConfigurationSupporting configuration management and videobrowsing through WEB;Provide access to platform(NVR) to conductparameter configuration and operating state management,supporting ONVIF2.0,GB28181
