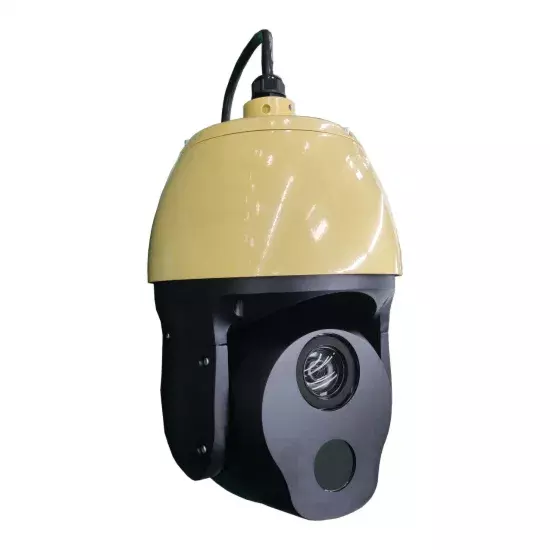

300m Laser Night Vision High Speed Dome Camera (SHR-HDLV311)

Model NO. SHR-HDLV311 Sensor CMOS HDMI Format 1080P Horizontal Resolution 1920 Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Auto BLC Effective Distance 400at Daytime, 200m at Night Sensor Size 1/3 inch Remote Control With Remote Control Size 335X220X220mm Resolution 1080P Lens 4.7~94mm, 20× Optical Zoom Monitoring Disgtance 300m at Night, 600m at Daytime Protection IP66 Weight 8kg Transport Package Wooden Case/Carton Specification CE, FCC Trademark SHEENRUN Origin Shandong, China Production Capacity 1000

Product Description

1. Product Features                                                                                                                                 Adopting the second generation laser illuminating system,LCMM laser homogenization technology,homogeneous and exquisite laser spot Illuminating system adopting combined zooming spot controlling technology,wider spot changing range,quicker synchronous zooming speed Adopting near-infrared light source to fill light,good concealment,not easy to detect 20× optical zooming,supporting day&night mode auto switch,backlight compensation,wide dynamic High-performance embedded processor,adopting high efficiency H264 compression algorithm,providing clear,real-time and fluent video Supporting dual-stream,fully satisfying different network bandwidth environment in practical application Fully supporting ONVIF,GB/T28181,providing SDK,can dock with main monitoring platform home and abroad Precise stepper motor driven,rapid response,stable operation,image without dithering Humanization design,high intelligence,supporting 3D locating,power off memory,zooming and speed changing Equipped with double window wiper,cleaning laser and camera window at the same time,suitable for monitoring sites of more dust and rain Adopting high performance power supply program,wide voltage input,low power consumption, suitable for special power supply method such as solar energy 2. Technical Specifications         Monitoring distanceNight vision200mDay vision400mCameraSensor type1/2.8" Progressive Scan CMOSEffective pixels2.1MPLens focal length4.7~94mm,20× optical zoomingMin illumination0.05Lux(color);0.01Lux(black and white)Electronic shutter speedAuto/manual adjustmentCamera controlAuto gain control,auto white balance,auto backlight compensation;supporting manual and auto day&night mode switch,shutter switch,3D denoising, wide dynamicVideo coding and network parameterCoding formatH.264Video resolution1080p,CIF,supporting double streamVideo bit rate64Kbps~4MbpsVideo frame rate1~25f/s(50Hz),1~30f/s(60Hz)Supporting protocolTCP/IP,HTTP,FTP,RTP/RTCP,NTP,DNS,PPPoE,RTSP,supporting heartbeat,intelligent retransmission and restructuringIlluminatorpower5wwave length810nmIlluminating angle2°~50°electric continuous adjustmentLight homogenizationLCMM light homogenization technologyPan-tiltAngleHorizontal 360°continuous rotation,pitching: -90°~+5°auto reverseSpeedHorizontal:0.05°~120°/s,pitching:0.05°~80°/sPresetting bitsMax 256Cruising function6 cruising pathsIntelligence256 preset bits,cruising, linear sweep, auto scan,keep watching,power off memory, zooming and speed changing, auto reverseInterfaceNetwork interface1×10Base-T/100Base-TX,RJ45Power interfaceAC24VAudio interface1×Line In,1×Line OutAlarm interface1 input,1 outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP65Anti-lightningGB/T 4857.10-2005Whole unit power supplyPower supplyAC18V~AC36VPower consumption≤45WPhysical featuresweight5Kgsize335×220×220 (mm) 3. Our Company China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
