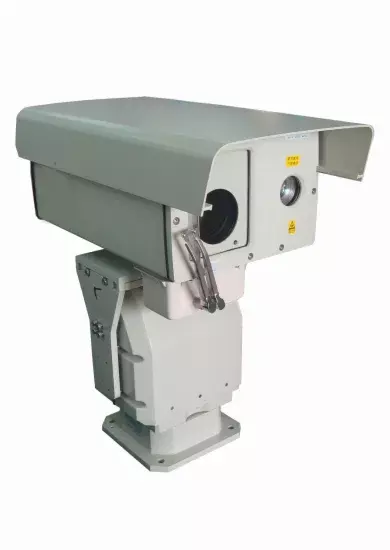

3000m Middle Range Laser Night Vision PTZ Camera

Model NO. HLV1520 Sensor CMOS HDMI Format 480P Horizontal Resolution 480tvl Kind Autofocus Lens Certification CE, FCC, CCC, RoHS, EMI/EMC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC Effective Distance 3000m Sensor Size 1/3 inch Remote Control With Remote Control Transport Package Wooden Case/Carton Specification IP66 Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 5000

Product Description

Product features 1) Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black 2) Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring 3) MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition 4) Supporting fog penetration, backlight compensation, multistage wide dynamic 5) Optional auto focusing function, realizing multiple focusing mode and triggering mode 6) Supporting camera back focal length fine adjustment technology and camera remote debugging 7) Supporting long focal length speed limit and 3D locating function 8) Abundant network protocol and good network applicability, adapting all kinds of network environment 9) External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment 10) Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain   Monitoring distanceNight vision1500metersDay vision3000metersImaging lensFocal length15.6~500mmFOV0.8°~24.7°Auto focusingsupporting(optional)Fog penetrationsupporting(optional)CameraSensor type1/1.8"Progressive Scan CMOSCoding modeH.264/MPEG4/MJPEGVideo resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25F/S(50Hz),1~30F/S(60Hz)IlluminatorIlluminating lens60* zooming laser telephoto lensPower10WWave length810nmIlluminating angle0.5°~30°continuous changingLight  homogenizationmulti-tube core fusion mixed mode light homogenization technologyShieldMaterialPrecise casting aluminum alloyWindow glass4mm crystallite super white optical glassPan-tiltCarrying capacity22kg(top load)AngleHorizontal 360°continuous rotation,pitching -60°~+20°SpeedHorizontal 0.1°~9°/s,pitching 0.1°~4°/sPreset bits255 bits,supporting lens zooming and focusing memory,8 cruising pathsAuto cruising8 paths,10 preset bits each pathAnti-lightning2000VInterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/5A water proof power supplyWhole machine power consumption≤120WPhysical featuresWeight25kgInstallation methodoutdoor pedestal mounting
