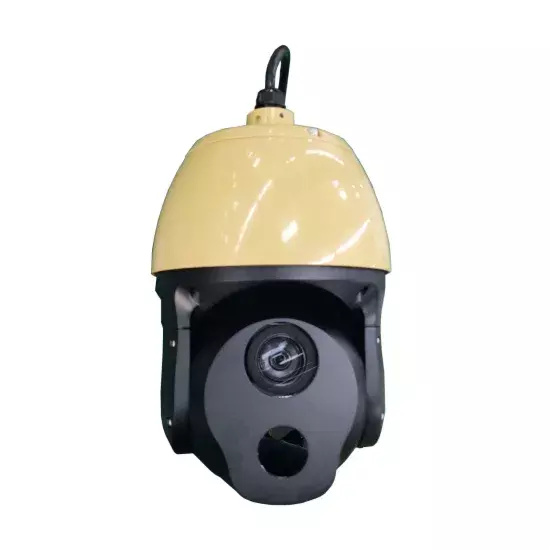

2MP 40X Optical Zoom Visible Light and 640X480, 25mm Lens Thermal Imaging Dual Sensor Speed Dome Camera

Sensor Uncooled Fpa (Vox) HDMI Format 1080P and 480p Horizontal Resolution 520tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof Effective Distance 2 Km Sensor Size 1/2.8"  Remote Control With Remote Control Day Camera 1000m Thermal Human Detect 700m Thermal Human Recognize 170m Thermal Human Identify 90m Thermal Car Detect 2000m Thermal Car Recognize 500m Thermal Car Idntify 250m Thermal Detector Uncooled Microbolometer Focal Plane Array(Vox) Detector Resolution 384×288/640×512 Thermal Lens 25mm Transport Package Wooden Case Specification 230mm× 230mm× 437mm Trademark CZVZ Origin China Production Capacity 100/Month

Product Description

Product features1. Integrating infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring2. Adopting thermal imaging technology, not limited by light source, imaging clearly3. Day and night 2 megapixel low illuminance color camera, realizing details observing4. High intelligence, simple to operate, easy to use and maintain5. 3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability6. Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating  Specification Thermal Imaging DetectorUncooled amorphous silicon FPAArray format/Pixel pitch640x512 /17μm                                                       Sensitivity≤60mk@300KImage Frame Rate50 HZ(PAL)/60HZ(NTSC)Spectral range8-14μmImage definition768x576Lens25 mm   Digital Zoom1x,2x,4xPseudo color9 Pseudo Color palettes changeable; White Hot/black hotDay cameraImage Sensor 1/1.8" Progressive Scan CMOS, 2MP;Effective Pixels 2560(H) x 1440(V), 5 Megapixels;Minimum IlluminationColor: [email protected];B/W: [email protected] (IR on)LENSFocal Length Focal Length 6mm~240mmOptical Zoom  Optical Zoom 40xPTZPan Range360° endless                                       Pan Speed0.05°~180° /s                                     Tilt Range-3°~93°                                       Tilt Speed0.05°~120°/s                                                     Number of Preset255Patrol6 patrols, up to 18 presets per patrolPattern4 , with the total recording time not less than 10 minsPower loss recoverySupportVideoCompressionH.265/H.264 / MJPEGStreaming3 StreamsBLCBLC / HLC / WDR(120dB)White BalanceAuto, ATW, Indoor, Outdoor, ManualGain ControlAuto / ManualNetwork Ethernet RJ-45 (10/100Base-T)Interoperability ONVIF, PSIA, CGIWeb ViewerIE10/Google/Firefox/Safari...GeneralPowerAC 24V, 50W(Max)Working temperature-40ºC~60ºCHumidity90% or lessProtection levelIp66, TVS 4000V Lightning protection, surge protectionMount optionWall Mounting, Ceiling MountingWeight6.5kg                                          Dimension                             Φ230×437(mm)
