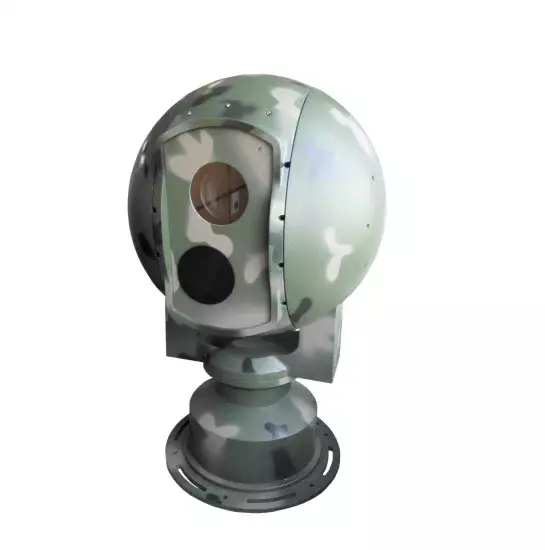

2MP 24h 6.5km Long Range PTZ Eo Big Dome Thermal Camera

Model NO. PT550HLV3020HTIR210R Sensor CMOS HDMI Format 1080P Horizontal Resolution 420tvl Kind Autofocus Lens Certification CE, FCC, CCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 6km Sensor Size 1/3 inch Remote Control With Remote Control Imaging Lens 12.5-750mm Thermal Detector Type Uncooled Microbolometer Focal Plane Array(Vox) Thermal Lens 36~180mm Power Supply DC30V Transport Package Wooden Case/Carton Specification CE, FCC Trademark SHEENRUN/OEM Origin Shandong, China Production Capacity 100

Product Description

Main Features:                                                                     1) Adopting thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance 2) High resolution infrared detector with NETD≤ 50mK 3) Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring 4) Optional auto focusing function, realizing multiple focusing mode and triggering mode 5) Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency 6) 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability 7) High reliability aluminum alloy electro-optical pantilt, reinforcement design, strong ability of anti-wind, anti-salt fog, low and high temperature resistance etcTechnical indicators:  ModelPT450HLV1020TIR155RPT550HLV3020HTIR210RPT550HLV4020ZIR75-300RMonitoring distanceHD camera2000m6500m9000mThermal cameraHumanVehicleHumanVehicleHumanVehicle3600m9900m5600m16000m6270m15330m900m2470m1400m4000m1570m3830m450m1200m700m2000m780m1920mThermal detectorDetectorUncooled microbolometer focal plane array(Vox)Cooled detectorPixel324×256640×512324×256Spectral range8~ 14μmNETD≤[email protected],300K≤25mKFrame rate25HzImage processDDE, pseudo colorDDEThermal lensFocal length30~150mm, 5x zoom20~200mm,10x zoom75/300mm dual FOV lensFOV3.1°×2.4°~15.2°×12.2°3.1°×2.5°~30.4°×24.6°7.3°×5.9°/1.8°×1.5°F valueF1.0~ F1.2F1.0~ F1.2F2.3Lens controlE-zoom, e-focus(auto focus optional)IFOV0.17~0.83mrad0.4~0.1mrad0.4~0.1mradHD CameraSensor type1/1.8'' Progressive Scan CMOSCoding formatH.264/MJPEG/MPEG4Video resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~ 16MbpsVideo frame rate1~ 25F/S (50Hz), 1~ 30F/S (60Hz)HD lensFocal length10~320mm16.7~1000mmFOV1.1°~ 35.5°25°~ 0.45°OtherDefog, Auto focus Support for optionalPan-tiltload25kg40kgAnglePan: 0°~ 360°;  Tilt: -45°~ +45°speedPan: 0.01°~ 45°/s;  Tilt: 0.01°~ 30°/sPreset200Preset accuracy±0.1°(±0.05° optional)Auto cruise8 paths, 10 presets each pathAuto scan1 pathAnti-windGrade 12InterfacePower supplyDC30VNetwork interface1x10Base-T/100Base-TX,RJ45VideoRS485/RS422, BNC video outputEnvironment indicatorstemp.operation -25ºC~ +55ºC (-40ºC~ +65ºC optional), Storage -40ºC~ +65ºCProtection gradeIP66Power supplyPowerWide range power input AC90~305V to output DC30V/10A,anti-water power supplyConsumption≤180W(without heater); ≤230W(with heater) Product application:
