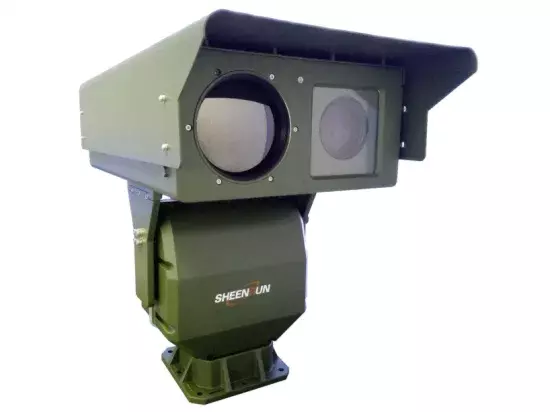

2km Human Recognition HD IR Laser Night Vision CCTV Camera

Model NO. SHR-HLV2020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Night Vision 2000 M Day Vision 5000 M Focal Length 12.5~750mm Fov 28.7°~0.5° Sensor Type 1/1.8"Progressive Scan CMOS Illuminator Lens 60* Zooming Laser Telephoto Lens Wave Length 810 Nm Illuminating Angle 0.5°~30°continuous Changing Weight 50 Kg Power Consumption ≤130W Transport Package Carton Specification 440mm× 213mm× 217mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

1 Product features Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition Supporting fog penetration, backlight compensation, multistage wide dynamic Optional auto focusing function, realizing multiple focusing mode and triggering mode Supporting camera back focal length fine adjustment technology and camera remote debugging Supporting long focal length speed limit and 3D locating function Abundant network protocol and good network applicability, adapting all kinds of network environment External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain                                     2km at night                                        2km in the day 2 Specification   Monitoring distanceNight vision2000metersDay vision5000metersImaging lensFocal length12.5~750mmFOV28.7°~0.5°Auto focusingSupporting(optional)Fog penetrationSupporting(optional)CameraSensor type1/1.8"Progressive Scan CMOSCoding modeH.264/MPEG4/MJPEGVideo resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25F/S(50Hz),1~30F/S(60Hz)IlluminatorIlluminating lens60* zooming laser telephoto lensPower15WWave length810nmIlluminating angle0.5°~30°continuous changingLight  homogenizationmulti-tube core fusion mixed mode light homogenization technologyShieldMaterialPrecise casting aluminum alloyWindow glass4mm crystallite super white optical glassPan-tiltCarrying capacity50kg(top load)AngleHorizontal 360°continuous rotation,pitching -45°~+45°(-60°~+20° optional)SpeedHorizontal 0.01°~12°/s,pitching 0.01°~8°/sPreset bits255 bits,supporting lens zooming,focusing and preset bitsAuto cruising8 paths,10 preset bits each pathAnti-lightning2000VInterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/5A water proof power supplyWhole machine power consumption≤130WPhysical featuresWeight50kgInstallation methodoutdoor pedestal mounting    3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
