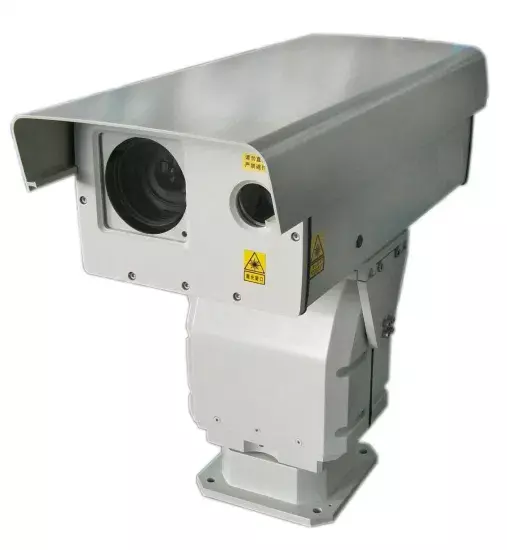

2km Distance PTZ Laser Night Vision Camera for City Surveillance

Model NO. SHR-HLV2020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 600tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 2km Nght Vision, 5km Day Vision Sensor Size 1/1.8′′ Remote Control With Remote Control Night Vision Distance 2km Day Vision Distance 5km Pixel 2.1 Mega Pixel Focal Length 12.5-750mm Laser Wavelength 810nm Laser Power 15W Pan Angle 360 Degree Tilt Angle -45 Degree to +45 Degree IP Control or Not IP Control Protection Degree IP66 Transport Package Carton / Wooden Case Specification 45kg Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Packaging & Delivery

Package Size 26.50cm * 18.00cm * 31.50cm Package Gross Weight 25.500kg Lead Time 15 days (1 - 2 Pieces) To be negotiated ( > 2 Pieces)

Product Description

Product Description

1  Features  (1) 2km night vision and 5km day vision, 12.5-750mm lens  (2) With auto day / night switch, the camera can monitor 24 /7. (3) Auto focus (4) Support fog penetrating, backlight compensation and WDR (5) 3D positioning function    2  Specifications Monitoring DistanceNight Vision2kmDay Vision5kmImaging LensFocal Length12.5-750mmFOV0.5°-28.7°Focus ModeAuto focusFog PenetratingOptionalVisible Light CameraSensor1 /1.8" progressive scan CMOSPixel2.1MPVideo FormatH.264 / MPEG4 / MJPEGVideo Resolution1080P, CIF, supports three data ratesBitrate32Kbps-16MbpsFrame Rate1-25fps(50Hz), 1-30fps(60Hz)Laser IlluminatorIlluminating Lens100mm zoom laser telephoto lensPower15WWavelength810nmIlluminating Angle0.5°-30° continuous adjustmentEven LightMCIC even light technologyPan-tiltLoad Capacity50kg (top mount)SpeedPan speed 0.01° -12°/s, tilt speed 0.01° -8°/sAnglePan 360°, tilt -45° to +45°(optional -60° to +20°)Presets255 presets, support lens focus zoom memoryCruising Paths8 cruising paths, each path can set 10 presetsInterfacePower SupplyDC24VInternet Interface1 x 10Base-T / 100Base-TX, RJ45 interfaceEnvironmental IndicatorsOperation Temperature-25ºC to +55ºC Storage Temperature-40ºC to +65ºCProtection GradeIP 66PowerPower SupplyDC 24V±5% /2.5A, waterproof AC110V/220V - DC24V power adapterPower Consumption≤130WWeight45kg   After Sales Service (1)  We generally offer one year warranty.  Extended warranty is also available.  (2 ) We accept OEM.  (3)  Life-long technical support. Professional technical team and salesperson help you       with troubleshooting procedures via Internet and Phone any time. (4)  Door-to-door service if necessary. (5) Color can be customized.  Packaging & Shipping

  Company Profile FAQ  Is your company a manufacturer?       Yes. China CZVZ manufactures thermal camera, laser camera and multi-sensor camera since 2004.  What is the price?       Please kindly send me the specificatons or application details and then we will send you suitable camera's demo video, specifications and price. What is your warranty?    We generally offer one year warranty. Extended warranty is also available.  Does your company offer customized products?    Yes.  Does your company accept OEM?    Yes.
