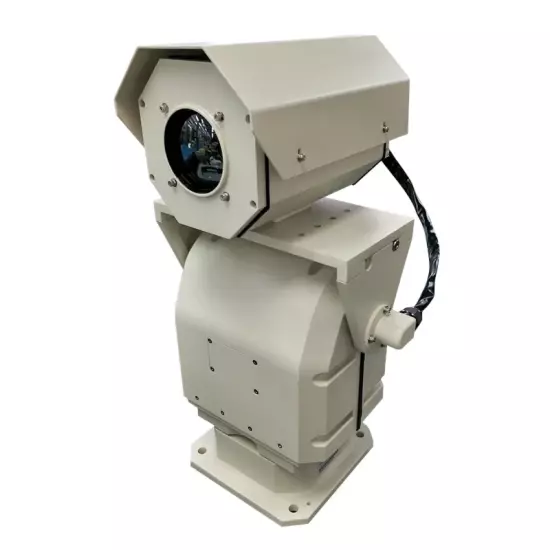

20-60mm 3X Zoom Shrimp Farm Monitor PTZ Dual Thermal Camera

Model NO. SHR-TIR63 Sensor Uncooled Vox HDMI Format IP/Analog Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Auto BLC Effective Distance Vehicle 4km People 1.4km Remote Control With Remote Control Detection Distance 1.4km to Human, 4km to Vehilce Recognition Distance 360m to Human, 990m to Vehilce Lens 20~60mm,3* Optical Zoom Detector Uncooled Detector Vox Resolution 324*256 Transport Package Wooden Case/Carton Specification CE, FCC Trademark SHEENRUN Origin China Production Capacity 100 Units / Month

Product Description

1  Product Features *  324×256 High resolution uncooled microbolometer infrared focal plane arrays,vox *  25µm super small pixel,image quality fine,observe small target more clearly,further detection distance *  High sensitivity, NETD can reach 50mk and frame at 25Hz *  Word originate 20~60mm continuous zooming,can search in a wide range as well as identify target far,don't lost    target *  Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color *  Low power consumption, quick start-up, stable performance, image clearly with high uniformity * RS 485 interface control, analog video signal output * Simple operation,easy to use and maintain * Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh      environment,overlength working lifetime 2 Technical indicators  Monitoring distance Object People(1.8m×0.5m) Vehicle(2.3 m×2.3 m) Detect distance 1440m 3960m Recognize distance 360m 990m Identification distance 180m 480m Thermal lens Focal length 20~60mm,3x optical zoom FOV 7.6°×6.1°~22.6°×18.2° F 1.0 Lens control Electronic zoom/focus(auto focus is optional) Detector Detector type Uncooled FPA detector(vox) Pixel 324×256,pixel 25µm Spectrum 8~14μm NETD ≤50mK Frame 25Hz NUC Auto/Manual/Background correction Image process DDE,pseudo color Video output PAL Interface Power supply interface DC12V Other interface RS485,BNC Video output Environmental indicators Working temperature -25ºC~+55ºC Storage temperature -40ºC~+65ºC International protection IP66 Anti-vibration GB/T 4857.10-2005 Anti-impact GB/T 15412-94 Free drop test method Anti-thunder 2000V Power Power supply DC12V(attached AC220V/DC12Vpower adapter) Power consumption ≤8W Physical features Weight ≤1.8Kg Size 251mm×115mm×117mm(L×W×H,contain sunshield cover) Installation Outdoor base install 3 Demo photo 4 Company photos
