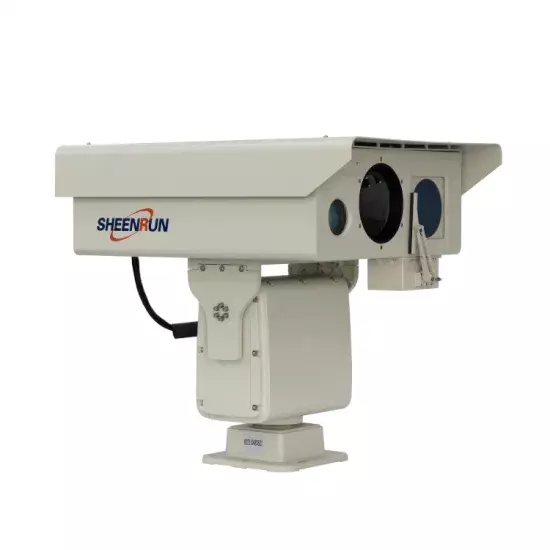

2023 Hot Sales PTZ Infrared IR Thermal Camera for Drone Long Range

Model NO. SHR-HLV2020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 480tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance ≧30m Sensor Size 1/3 inch Remote Control Remote Control Protection Grade IP66 Thermal Lens F Value 1.0 Monitor Distance Thermal Camera 12km Pantilt Cruising Function 8 Paths Laser Illuminator Power 10W Thermal Lens Focal Length 30~150mm Visible Lens F=4.5~135mm Power Supply Interface DC12V Installation Method Outdoor Pedestal Mounting Transport Package Carton/Wooden Package Specification 240mmx500mmx243mm Trademark CZVZ Origin Shandong, China Production Capacity 1000piece/Month

Packaging & Delivery

Package Size 57.00cm * 50.00cm * 40.00cm Package Gross Weight 12.500kg

Product Description

Product Description

Product Features

Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black

Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring

MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition

Supporting fog penetration, backlight compensation, multistage wide dynamic

Optional auto focusing function, realizing multiple focusing mode and triggering mode

Supporting camera back focal length fine adjustment technology and camera remote debugging

Supporting long focal length speed limit and 3D locating function

Abundant network protocol and good network applicability, adapting all kinds of network environment

External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment

Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain



Specification

Monitoring distance Night vision 2000meters Day vision 5000meters Imaging lens Focal length 12.5~750mm FOV 28.7°~0.5° Auto focus Support Fog penetration Support(optional) Camera Sensor type 1/1.8"Progressive Scan CMOS Coding mode H.264/MPEG4/MJPEG Video resolution 1080P,CIF,supporting three stream Video bit rate 32Kbps~16Mbps Video frame rate 1~25F/S(50Hz),1~30F/S(60Hz) Illuminator Illuminating lens 60x zooming laser telephoto lens Power 15W Wave length 810nm Illuminating angle 0.5°~30°continuous changing Light  homogenization multi-tube core fusion mixed mode light homogenization technology Shield Material Precise casting aluminum alloy Window glass 4mm crystallite super white optical glass Pan-tilt Load 50kg(top load) Angle Horizontal 360°continuous rotation, vertical -45°~+45°(-60°~+20° optional) Speed Horizontal 0.01°~12°/pitching 0.01°~8°/s Presets 255 bits, supporting lens zooming, focusing and preset bits Auto cruise 8 paths,10 preset bits each path Anti-lightning 2000V Interface Power supply interface DC30V Network interface 1×10Base-T/100Base-TX, RJ45 Environment indicators Working temp -25ºC~+55ºC Storage temp -40ºC~+65ºC Protection grade IP66 Power Power supply Wide range AC90 ~ 295V to DC30V/5A waterproof power supply Power consumption ≤130W Physical features Weight 45kg Installation method outdoor pedestal mounting



  Application for various fields: safe city monitoring, forest fire-proof monitoring, high attitude monitoring, railway monitoring, harbor monitoring, oilfield monitoring, freeway monitoring etc. Company Profile

China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
