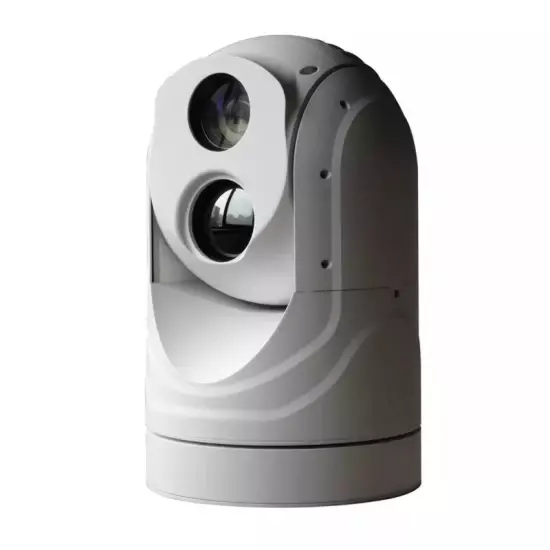

2000m Medium Size Photoelectric Pod Monitoring Camera

Model NO. SHR-OEPM9 Sensor CMOS HDMI Format 1080P Horizontal Resolution 520tvl Kind Autofocus Lens Certification CE, FCC, CCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size Effective Distance 2000m Sensor Size 1/3 inch Remote Control With Remote Control Weight 6.5 Transport Package Wooden Case/Carton Specification 200X200X325 Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 5000

Product Description

Product Description

The camera is equipped with high sensitive infrared detector and day camera components, integrated with high precision transmission and gyro stabilizer system, can be used for quick search and observation of targets in sea, air, and shore regions. Also, this device is with excellent Human-computer interaction interface and rich external control interface, seamlessly connection with ship control systems, airborne control systems, and vehicle control systems. Play an important role in emergency response to major disasters or emergencies such as smuggling at sea, search and rescue, environmental monitoring, and forest fire monitoring.

Features

Integrated infrared detection system, camera system, high-precision transmission system and gyro stabilization system High precision two-axis gyro stabilization technology  Visible light camera wavelength extension infrared enhancement technology Modular, parallel real-time embedded system Real-time video OSD High-strength, high-precision, ultra-low resistance turret structure design Spherical design enhances the wind resistance ability, full metal casing Special reinforcement design, suitable for all kinds of drones, helicopters, vehicles, ships and other carriers    Low power consumption, less heat generates during work, stable working performance

Product Parameters

Monitoring DistanceThermal cameraTarget Human (1.8x0.5m)Vehicle(2.3x2.3m)Detection1400m4000mRecognize350m1000mIdentification170m500mDay camera (optional)1100m Photoelectric podPlatform typeTwo-axis Horizontal scope 360° Vertical scope +90° ~-90°Azimuth and vertical angular speed  ≥100°/s Azimuth and vertical angular acceleration ≥60°/s2  Stable precision≤1mrad(RMS)Day camera(as optional) Sensor type1/4″EXview HAD CCDEffective pixels 0.44MP (HD optional)Horizontal resolution 530TVL(color);570TVL(black/white) Focal length3.4~122.4 mm, 36x optical zoom White balanceAuto / Auto Track / Indoor / Outdoor / Trigger / ManualSNR≥50dbThermal camera DetectorUncooled FPA microbolometer, VOx Effective pixels384×288Spectrum range 8~14μmNETD ≤[email protected],300K Focal length50mm (optional)OSDCurrent date, time, longitude, latitude, altitude, speed, and azimuth pitch angle information can be superimposed on the live video, with display and blanking superimposed characters.InterfacePowerDCOthersRS422,2×BNC video output (IP, HD-SDI optional)Environmental indicatorOperation temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Salt fog proofPH6.5~7.2, Continuously spraying 48 hoursPower supplyWorking power supplyDC18V~36VWhole device power consumptionPeak power ≤ 70w;                        continuous power ≤ 55w Physical featuresWhole device weight≤15kgDimension265mm×265mm×410mm (without transfer base )
