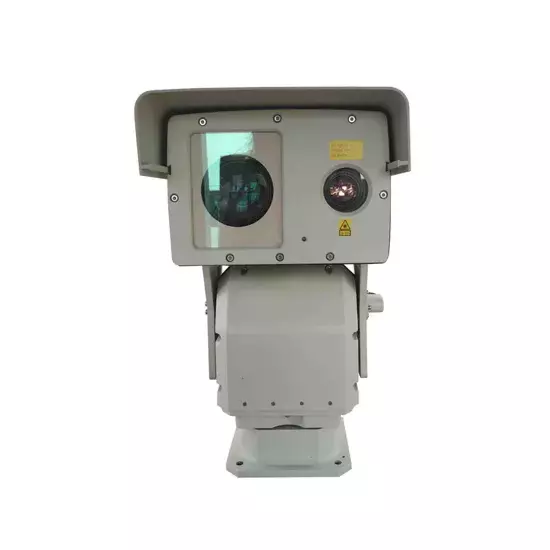

2000m Day Vision and 1000m Night Vision PTZ IP Laser Night Vision Camera

Model NO. SHR-HLV1020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Night Vision 1000m See Human Gesture Day Vision 2000m See Human Gesture Focal Length 10~320mm Resolution 2MP Illuminating Lens 60* Zooming Laser Telephoto Lens PTZ 360° Continuously Weight 25kg Power Consumption ≤80W Working Temperature -25ºC~+55ºC Storage Temperature -40ºC~+65ºC Protection Grade IP 66 Transport Package Carton Specification 223mm× 206mm× 82mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

1 Product Features1. Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black2. Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring3. MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition4. Supporting fog penetration, backlight compensation, multistage wide dynamic5. Optional auto focusing function, realizing multiple focusing mode and triggering mode6. Supporting camera back focal length fine adjustment technology and camera remote debugging7. Supporting long focal length speed limit and 3D locating function8. Abundant network protocol and good network applicability, adapting all kinds of network environment9. External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment10. Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain   2 Specification   Monitoring distanceNight vision1000metersDay vision2000metersImaging lensFocal length10~320mmFOV1.2°~36.8°Auto focusingsupporting(optional)Fog penetrationsupporting(optional)CameraSensor type1/1.8"Progressive Scan CMOSCoding modeH.264/MPEG4/MJPEGVideo resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25F/S(50Hz),1~30F/S(60Hz)IlluminatorIlluminating lens60* zooming laser telephoto lensPower8WWave length810nmIlluminating angle0.5°~30°continuous changingLight  homogenizationmulti-tube core fusion mixed mode light homogenization technologyShieldMaterialPrecise casting aluminum alloyWindow glass4mm crystallite super white optical glassPan-tiltCarrying capacity22kg(top load)AngleHorizontal 360°continuous rotation,pitching -60°~+20°SpeedHorizontal 0.1°~9°/s,pitching 0.1°~4°/sPreset bits255 bits,supporting lens zooming and focusing memory,8 cruising pathsAuto cruising8 paths,10 preset bits each pathAnti-lightning2000VInterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/5A water proof power supplyWhole machine power consumption≤80WPhysical featuresWeight25kgInstallation methodoutdoor pedestal mounting  3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, armed police and other branches of the military, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world. CZVZ always adheres to "military technology for civilian use " and "joint development of military products and civilian products" strategy, mastered the key technology in optics and rugged computer field, possess complete qualification for research and production of military equipment, directed or participated in a number of military research and production tasks. CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security.
