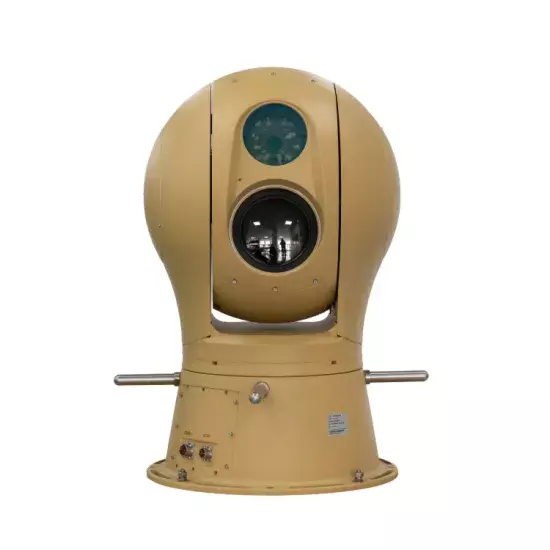

2 Km Day and 10 Km Thermal Imaging Dome Electro Optical Pantilt System

Model NO. SHR-PT450HLV1020TIR155R Video Capture System Video Camera Video Transmission System Optical Fiber Transmission Software Function Monitoring+Control Software Usage Computer Monitoring Software Client Software Client Software Model Surveillance Sensor CMOS Kind Autofocus Lens Technology Pan / Tilt / Zoom Horizontal Resolution 540tvl Whole Machine Power Consumption ≤230W Transport Package Carton Specification 400mm× 400mm× 500mm Trademark CZVZ Origin China Production Capacity 10 Units / Month

Packaging & Delivery

Package Size 80.00cm * 65.00cm * 60.00cm Package Gross Weight 75.000kg

Product Description

SHR-PT450HLV1020TIR155R Dome Electro Optical Pantilt System   1 Features: Adopting thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance High resolution infrared detector with NETD≤ 50mK Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring Optional auto focusing function, realizing multiple focusing mode and triggering mode Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability High reliability aluminum alloy electro-optical pantilt, reinforcement design, strong ability of anti-wind, anti-salt fog, low and high temperature resistance etc.  2 Specification:   Monitoring distanceHD camera2000mThermalcameraHumanVehicle3600m9900m900m2470m450m1200mThermal detectorDetector Uncooled microbolometer focal plane array(Vox)Pixel324×256Spectral range8~ 14μmNETD≤[email protected],300KFrame rate25HzImage processDDE, pseudo colorThermal lensFocal length30~150mm, 5x zoomFOV3.1°×2.4°~15.2°×12.2°F valueF1.0~ F1.2Lens controlE-zoom, e-focus (auto focus optional)IFOV0.17~0.83mradHD CameraSensor type1/1.8'' Progressive Scan CMOSCoding formatH.264/MJPEG/MPEG4Video resolution1080P, CIF, supporting three streamVideo bit rate32Kbps~ 16MbpsVideo frame rate1~ 25F/S (50Hz), 1~ 30F/S (60Hz)HD lensFocal length10~320mmFOV1.1°~ 35.5°OtherDefog, Auto focus Support for optionalPan-tiltload25kgAnglePan: 0°~ 360°; Tilt: -45°~ +45°speedPan: 0.01°~ 45°/s; Tilt: 0.01°~ 30°/sPreset200Preset accuracy±0.1° (±0.05° optional)Auto cruise8 paths, 10 presets each pathAuto scan1 pathAnti-windGrade 12InterfacePower supplyDC30VNetwork interface1x10Base-T/100Base-TX, RJ45VideoRS485/RS422, BNC video outputEnvironment indicators temp.operation -25ºC~ +55ºC (-40ºC~ +65ºC optional), Storage -40ºC~ +65ºCProtection gradeIP66Power supplyPowerWide range power input AC90~305V to output DC30V/10A, anti-water power supplyConsumption≤180W (without heater); ≤230W(with heater)    3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, armed police and other branches of the military, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world. CZVZ always adheres to "military technology for civilian use " and "joint development of military products and civilian products" strategy, mastered the key technology in optics and rugged computer field, possess complete qualification for research and production of military equipment, directed or participated in a number of military research and production tasks. CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security.
