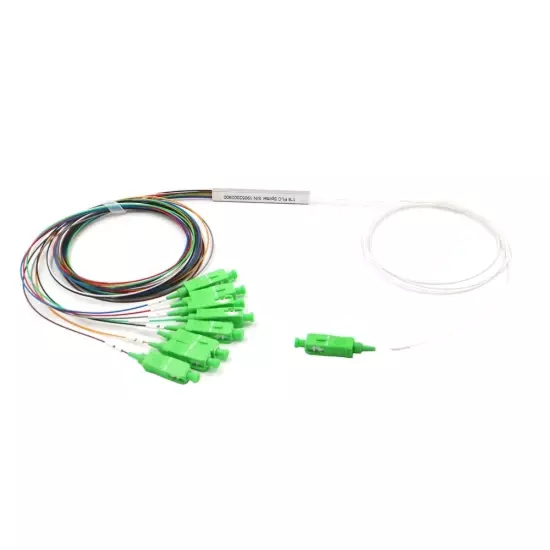

1X8 PLC Splitter Sc/APC Fiber Optic Splitter 1mtr

Model NO. GS01-321 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Multicore Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material LSZH OEM Yes MOQ 1 Samll Order Accepted Sample Free of Cost Delivery Time 1-3 Working Days Packing Customized Connector Sc/APC-Sc/APC Fiber Type G652D Cable 8 Cores Structure Steel Tube Sealing Transport Package Customized Trademark CZVZ Origin China HS Code 85447000

Product Description

Product Description

CZVZ Mini PLC splitter (Planar light wave circuit) is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets. It is widely used in PON networks to realize optical signal power management. It  can be 1x2,1x4,1x8,1x16,1x32,1x64. Choice of different connectors-SC/UPC,SC/APC.

  Features

|   Low insertion loss Low |   Polarization Dependent Loss |   Excellent Environmental Stability |   Excellent Mechanical Stability

  Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data communications Networks |   Local Area Networks

Product Parameters

Package Style

Mini Module

Configuration Type

1x8

Fiber Type

Singlemode G.657A1

Connector Type

SC/APC or SC/UPC

Input/Output Fiber Diameter

900μm

Input/Output Fiber Length

1m or customized

Insertion Loss

≤10.6dB

Return Loss

≥50dB

Loss Uniformity

≤0.8dB

Directivity

≥55dB

Polarization Dependent Loss

≤0.2dB

Temperature Dependent Loss

≤0.5dB

Wavelength Dependent Loss

≤0.3dB

Operating Bandwidth

1260~1650nm

Split Ratio

50/50

Steel Tube Dimensions (HxWxD)

0.16"x2.36"x0.28" (4x60x7mm)

Operating Temperature

-20~70°C

Storage Temperature

-40~85°C

  Application |   Fiber to The Point (FTTX) |   Fiber to The Home (FTTH) |   Passive Optical Networks (PON) |   Gigabit Passive Optical Networks (GPON) |   Local Area Networks (LAN) |   Cable Television (CATV) |   Test Equipments.   About Us
