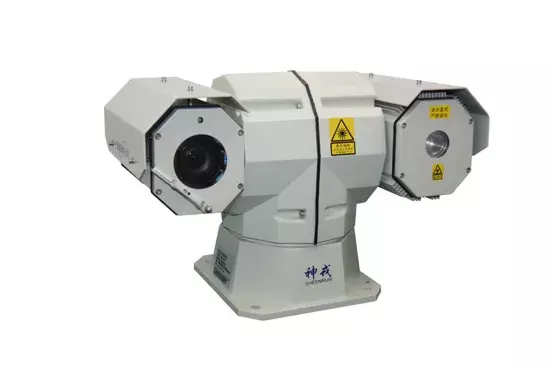

1km Laser Night Vision Camera with 500m Night Vision Distance

Model NO. SHR-HLV535 Sensor CMOS HDMI Format 1080P Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC, PTZ Effective Distance 500m Night Vision, 1000m Daytime Vision Sensor Size 1/2.8′′ Remote Control With Remote Control Night Vision Distance 500m Daytime Vision Distance 1000m Pixel 2.1 Mega Pixel Lens 4.5~135mm, 30× Optical Zoom IP IP66 Weight 8kg Laser Illuminator Power 5W Certificate Ce FCC Transport Package Carton / Wooden Case Specification 240× 374× 243mm Trademark SHEENRUN Origin China Production Capacity 1000 Units / Month

Product Description

1. Product Features

 • Adopting laser illuminating system, far illuminating distance, wide illuminating range, can monitor in 0Lux completely black

 • Day&night low light megapixel color to black camera, day&night continuous monitoring

 • Auto white balance, auto gain control, auto exposure control

  • High performance video processing chip and H.264 high efficiency video code, providing millions of high definition video image

  • Dual stream function, small time delay, fully satisfying different network bandwidth

 • Fully supporting ONVIF,GB/T28181,providing SDK, can dock with main monitoring platform home and broad

  • Motion detection and alarm linkage, providing intelligent video monitoring application

  • Capturing and videoing, supporting WEB browsing video, provide access to NVR platform to conduct parameter configuration and   operation state management

  • Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supplying   mode such as solar power

  • Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain 2. Technical Specifications

Monitoring distanceNight vision300mDay vision600mCameraSensor1/2.8" Progressive Scan CMOSTotal pixels2.1MPLens focal lengthf=4.7~94mm,20* optical zoomingLens apertureF1.6~3.5Min light0.05Lux(color),0.01Lux(black and white)Electronic shutter speedAuto and manual adjustmentCamera controlAuto gain control, auto white balance, auto backlight compensation; supporting manual and auto day and night mode switchVideo coding   coded formatH.264Video resolution1920x1080Bit rate64Kbps~4MbpsFrame rate1~25F/S(50Hz),1~30F/S(60Hz)Subtitle overlaystation logo, date, timeImage adjustmentbrightness, contrast, saturabilitySupporting protocolTCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional)IlluminatorPower5whjhvbWave length810nmIlluminating angle2°~50°synchronous servo continuous adjustmentHomogeneous lightLCMM homogenous technologyPan-tiltAngleHorizontal 360°continuous rotation,pitching:-90°~+90°SpeedHorizontal 0°~80°/s,pitching 0°~60°/sPreset bitMax 256Cruising function6 pathsInterfaceNetwork interface1×10Base-T/100Base-TX,RJ45Power supply interface1×AC 24V socket,for external power adapterAudio interface1×Line In,1×Line OutAlarm interface1 switch input,1 switch outputEnvironmental indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65 ºCProtecting gradeIP66Anti-vibration10~55Hz,2m/s²,0.75mmAnti-impact150m/s^2,11msAnti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2,surface with no changesPower supplyWorking power supplyAC 24V±5% /2.5A,please use the appendant power supplyPower consumption≤60W          Physical          featuressize240mm×374mm×243mmWeight8Kg            OthersApplication functionReal time clock;supporting manual capturing image and manual videoingConfigurationSupporting configuration management and videobrowsing through WEB;Provide access to platform(NVR) to conductparameter configuration and operating state management,supporting ONVIF2.0,GB28181 3. Company Intruduction

CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is one of the largest manufacturer of long range thermal imaging camera and laser night vision camera, as well as a supporting construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation,  developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging  technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.

4. Our Service

(1)  We generally offer one year warranty.  Extended warranty is also available.

(2)  We accept OEM.

(3) Life-long technical support. Professional technical team and salesperson help you with troubleshooting via Internet and Phone any time.

(4) Door-to-door service if necessary.

(5) Outside color of the produt  can be customized. 5.  FAQ

(1)  Is your company a manufacturer?      Yes. CZVZ is a manufacturer of  thermal camera and laser camera since 2004.

(2) What is the price?     Please kindly tell us your required specificatons or application details such as monitoring/ detection distance, then we will offer suitable      cameras with quotation.(3) What is your warranty?      We generally offer one year warranty. Extended warranty is also available.

(4) Does your company offer customized product?       Yes.

(5) Does your company accept OEM.      Yes.
