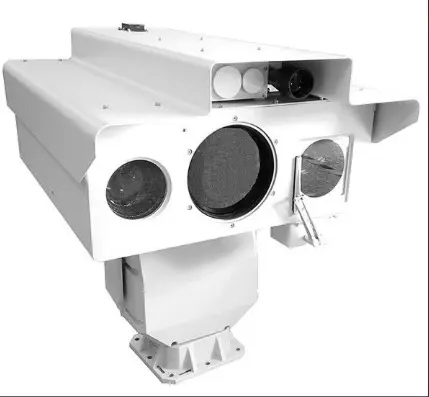

1km Laser Infrared Night Vision Outdoor IR Camera/Thermal Network Camera

Model NO. WHLV3020ATIR185R Sensor CMOS HDMI Format 1080P Horizontal Resolution 480tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 10-30m Sensor Size 1/3 inch Remote Control Remote Control Protection Grade IP66 Thermal Lens F Value 1.0 Monitor Distance Thermal Camera 12km Pantilt Cruising Function 8 Paths Laser Illuminator Power 10W Thermal Lens Focal Length 30~150mm Transport Package Carton/Wooden Package Specification 240mmx374mmx243mm Trademark CZVZ Origin Shandong, China Production Capacity 1000piece/Month

Packaging & Delivery

Package Size 60.00cm * 47.00cm * 37.00cm Package Gross Weight 12.500kg

Product Description

  Product Description Features: > Adopting continuous zooming thermal imaging technology> Infrared detector with high temp sensitivity, with min temp resolution of 50mK> Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black> Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring> MCIC multi-tube core fusion mixed mode light homogenization technology> Optional auto focusing function, realizing multiple focusing mode and triggering mode> Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency> 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability



 Technical Data:                 Model                                                  WHLV3020ATIR185RMonitoring distanceVisible lightNight vision: 3000m           Day vision: 6500mThermal ImagingDetection distanceHuman: 5040m, Vehicle: 14400mRecognition distanceHuman: 1260m,   Vehicle: 3600mIdentification distanceHuman: 630m,   Vehicle: 1800mLaser illuminatorPower15WIlluminating lens60x zooming laser telephoto lensWave length810nmLight homogenizationMCICHight Definition cameraLens Focal length12.5~750mmDouble lenssupporting(optional)Lens FOV0.6°~35°Lens Auto focusingsupporting(optional)Lens Fog penetrationsupporting(optional)Sensor1/1.8" Progressive Scan CMOSCoded formatH.264/H.265/MJEPGVideo resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25f/s(50Hz),1~30f/s(60Hz)Infrared lensFocal length36~180mmFOV2.5°×2.0°~12.7°×10.2°F valueF1.0~F1.2Lens controlelectric zooming, electric focusing(auto focusing optional)DetectorDetector typeuncooled microbolometer focal plane array(VOx)Effective pixels384×288Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPantiltAngleHorizontal 360°continuous rotation,pitching: -60°~+20°SpeedHorizontal 0.01°~12°/s,pitching 0.01°~8°/sPresets255Anti-lightning2000VCruising function8 paths,10 bits each pathCarrying capacity50kg(top load)InterfaceNetwork interface1x10Base-T/100Base-TX,RJ45Power supply interfaceAC 24V Other interfaceRS422 communication,BNC video outputEnvironmental indicatorsWorking temperature-25ºC~÷55ºCStorage temperature-40ºC ~÷65ºCProtection levelIP66Power supplyPowerAC24V±10%,appendant AC220V~AC24V/8A water proof power supplyConsumption≤170WPhysical featuresWeight45kgInstallation methodOutdoor pedestal mounting   Company Profile

CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China.CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability.





FAQ:  Q: 1. Is sample order available?        Yes, we can accept the sample order for testing. Q: 2. Do you have the MOQ requirement?         The MOQ is 1 piece. Q: 3. Do you support technical supporting for the installation and operation?          Yes, we have professional technician to supply solution for you. Q: 4. What is the lead time?          It depends on the order quantity. Q: 5. How to ship the products?         For small order, it's usually shipped by express, like FEDEX, DHL, UPS or TNT etc.         For bulk order, it can be shipped as customer's need. Q: 6.What is the warranty for the product?        The warranty is 1 year. Q: 7. How about your after sale service?         Any problem about our product, please contact with us at any time. Q: 8. Do you accept the OEM product?          Yes, we can produce the product as customer requirement.   Package&Shipment:   Wooden / carton package means will be supplied to ensure the transport safety.
