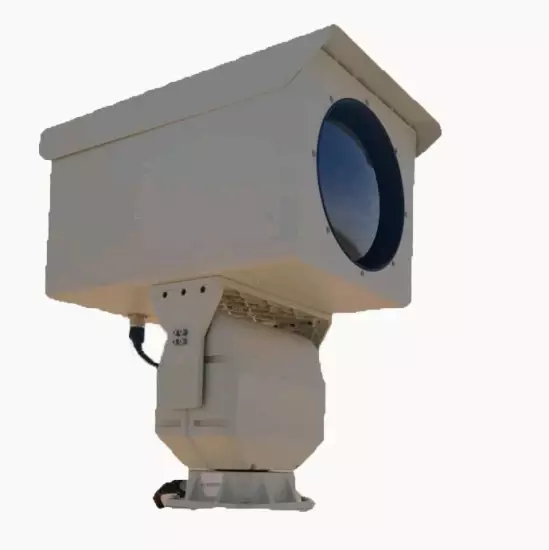

18km PTZ HD 1280X1024 High Definition Thermal Infrared Camera for Border Surveillance

Model NO. SHR-UDIR165 Sensor Vox Sensor HDMI Format 1280X1024p Kind Autofocus Lens Certification CE, RoHS Feature Waterproof / Weatherproof, High Definition Effective Distance 34km Factory Yes Certificate CE Color White Packaging Details Wooden or Carton Case Special Features Waterproof / Weatherproof Image Detector Vox Detect Distance 8km for Human,20km for Car Spectrum 8~14μm Transport Package Wooden Box Origin China Production Capacity 100PCS/Month

Product Description

PTZ Uncooled thermal camera with 1280*1024 resolution Product Features: 1. 1280×1024 HD uncooled micro-measuring radiant calorimeter focal plane array detector 2. 12µm pixel,exquisite image,more clear on object with more details,far detect distance 3. High sensitivity, minimum temperature resolution up to 60mK, frame frequency 30Hz 4. 5.5x optical continuous zoom, can be a wide range of search, but also to identify distant targets, do not lose the target 5. Image de-noising processing, increase image detail enhancement function, output hot white/hot black/pseudo color image 6. Low power consumption, fast start-up, stable performance, clear image, uniform picture 7. Standard network interface control, high-definition video signal output 8. Simple operation, easy to use and maintain DistanceObjectPeople(1.8m×0.5m)Vehicle(2.3 m×2.3 m)Detection6500m18700mRecognition2180m4670mIdentification1090m2340mInfrared lensFocal length30~165mm, 5.5x optical zoomFOV5.3°x 4.3°~28.7°x 23.1°Space resolution0.07~0.4mradF valueF 1.0~F 1.2Lens controlElectronic zoom/focus, Auto FocusDetectorDetector typeUncooled FPA detector(vox)Pixel1280×1024(12μm)Spectrum8~14μmNETD≤[email protected], 300KFrame30HzNUCAuto/Manual/Background correctionImage processDDE, pseudo colorVideo outputEthernetPan/tiltRotation SpeedPan 0.01°/s~20°/s, Tilt 0.01°/s~10°/s Rotation rangePan 360°continuous, Tilt ±45°Accuracy±0.1°PowerDC24V~DC60VPayload capacity50kgProtocolPelco DProtection gradeIP66SupportCruising, presets setup etc.InterfacePower supply interfaceDC30VOther interfaceHDMI or IPEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCPhysical featureWeight≤60KgConsumption≤70WSize682mm*348mm*376mm(L*W*H)Installation methodFixed
