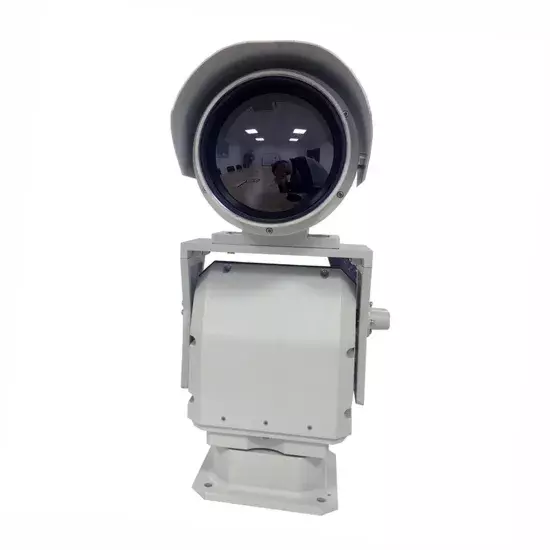

16km Long Range Thermal Surveillance Night Vision IR Camera

Model NO. HTIR210R Sensor Vox HDMI Format PAL Video Output Horizontal Resolution 324X 256 Resolution Kind Auto / Manual Certification CE, FCC Feature Waterproof / Weatherproof Effective Distance 5.6km to Human, 16km to Vehicle Remote Control With Remote Control Detection Distance 5.6km to Human, 16km to Vehicle Lens 20~200mm Resolution 640×512 Detector Uncooled Fpa(Vox) Pixel Pitch 17μm Category Thermal Imaging Camera Warranty One Year Transport Package Aluminum Alloy Box Specification 530× 275× 557mm Trademark SHEENRUN Origin Shandong Province, China Production Capacity 2000 Units / Month

Product Description

1. Product Features

 • Word originate 20~200mm 10x continuous zooming,can search in a wide range as well as identify target far.

• 640×512 High resolution uncooled microbolometer infrared focal plane arrays,vox

• 17µm super small pixel,image quality fine,observe small target more clearly,further detection distance

• High sensitivity, NETD can reach 50mk and frame at 25Hz

• Image noise reduction processing,add DDE function, output hot white/ hot black/pseudo color

• Low power consumption, quick start-up, stable performance, image clearly with high uniformity

• RS 485 interface control, analog video signal output

• Simple operation,easy to use and maintenance2. Technical Specifications

Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)Detect distance5600m16000mRecognize distance1400m4000mIdentification distance700m2000mThermal lensFocal length20~200mm,10x optical zoomFOV3.1°×2.5°~30.4°×24.6°F1.2Lens controlElectronic zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)Pixel640×512Spectrum8~14μmNETD≤50mKFrame25HzNUCAuto/Manual/Background correctionImage processDDE,pseudo colorVideo outputPALInterfacePower supply interfaceDC12VOther interfaceRS485,BNC video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12V power adapter)Power consumption≤15WPhysical featuresWeight≤10KgSize540mm×300mm×217mm(L×W×H,contain sunshield cover)InstallationOutdoor base install 3. Company Tour 4. Our Service

(1)  We generally offer one year warranty.  Extended warranty is also available.

(2)  We accept OEM.

(3) Life-long technical support. Professional technical team and salesperson help you with troubleshooting via Internet and Phone any time.

(4) Door-to-door service if necessary.

(5) Outside color of the produt  can be customized. 5.  FAQ

(1)  Is your company a manufacturer?      Yes. CZVZ is a manufacturer of  thermal camera and laser camera since 2004.

(2) What is the price?     Please kindly tell us your required specificatons or application details such as monitoring/ detection distance, then we will offer suitable      cameras with quotation.(3) What is your warranty?      We generally offer one year warranty. Extended warranty is also available.

(4) Does your company offer customized product?       Yes.

(5) Does your company accept OEM.     Yes.
