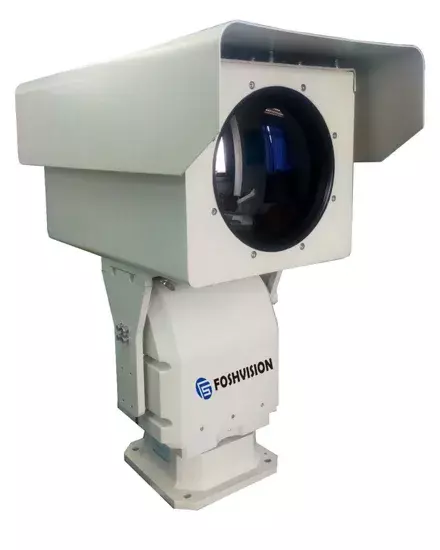

16km Long Range Border Defense Thermal Imaging Camera with 200mm Lens

Model NO. SHR-HTIR210R HDMI Format 1080P Horizontal Resolution 384X288 Resolution Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 12km Sensor Size 1/3 inch Remote Control With Remote Control Monitoring Distance Human: 4.2km; Vehicle: 12km Thermal Lens F Value 1.0-1.2 Thermal Lens Focal Length 30~150mm, 5X Optical Zoom Detector Type Uncooled Fpa Detector Detector Resolution 384X288, Pixel 17um Netd Less Than 50mk Video Output PAL/NTSC Pantilt Lode Capacity 18kg Pantilt Preset 200 Protection Grade IP66 Transport Package Carton/Wooden Package Specification 400mmx202mmx515mm Trademark CZVZ Origin Shandong, China Production Capacity 1000set/Month

Packaging & Delivery

Package Size 54.00cm * 30.00cm * 21.70cm Package Gross Weight 10.000kg

Product Description

High Speed PTZ IP66 Infrared Detector Uncooled Thermal Camera Product Description Main features   1. Word originate 20~200mm 10x continuous zooming,can search in a wide range as well as identify target far. 2. 640×512 High resolution uncooled microbolometer infrared focal plane arrays,vox 3. 17µm super small pixel,image quality fine,observe small target more clearly,further detection distance 4. High sensitivity, NETD can reach 50mk and frame at 25Hz 5. Image noise reduction processing,add DDE function, output hot white/ hot black/pseudo color 6. Low power consumption, quick start-up, stable performance, image clearly with high uniformity 7. RS 485 interface control, analog video signal output  8. Simple operation,easy to use and maintenance 9. Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime



 Technical Data:  Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3 m×2.3 m)   Detect distance5600m16000m   Recognize distance1400m4000m   Identification distance700m2000mThermal lensFocal length20~200mm,10x optical zoom   FOV3.1°×2.5°~30.4°×24.6°   F1.2   Lens controlElectronic zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)   Pixel640×512   Spectrum8~14μm   NETD≤50mK   Frame25Hz   NUCAuto/Manual/Background correction   Image processDDE,pseudo color   Video outputPALInterfacePower supply interfaceDC12V   Other interfaceRS485,BNC video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºC   Storage temperature-40ºC~+65ºC   International protectionIP66   Anti-vibrationGB/T 4857.10-2005   Anti-impactGB/T 15412-94 Free drop test method   Anti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12V power adapter)   Power consumption≤15WPhysical featuresWeight≤10Kg   Size540mm×300mm×217mm(L×W×H,contain sunshield cover)   InstallationOutdoor base install Application



Application:         Harbor Monitoring System                                                                   Patrol Vehicle Surveillance System                           Oilfield Monitoring System      Packaging & Shipping

   Package&Shipment:

  Wooden / carton package means will be supplied to ensure the transport safety.  Various express company can be choosed. FAQ



  FAQ: 1. Q: Is your company manufacturer?           Yes, CZVZ is the thermal camera and laser camera manufacturer since year 2004. 2. Q: Can you supply OEM service?          Yes, CZVZ can do OEM products as customer's requirement. 3. Q: What is the product's lead time?          It is confirmed by the order quantity. 4. Q: What is the warranty?          It is generally 1 year warranty, extend warranty is available. 5. Q: How will the product be shipped?          For sample order, it will be shipped by DHL, FEDEX, UPS or TNT.          For bulk order, we can arrange the shipment as customer requirement. 6. Q: How about your after sale service?          Any problem about our product, you can contact with us at any time. Our team will supply technical service for you.   Company Profile

Company Introduction:

CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability. The company photo:  The exhibition:
