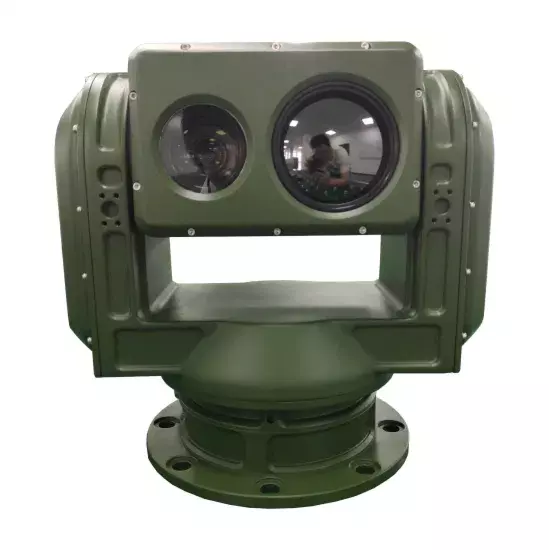

12km CMOS Long Range Electro Optical Infrared PTZ Thermal Imager IP Camera

Model NO. UT550HLV4020HTIR210R Sensor CMOS HDMI Format 1080P Horizontal Resolution 420tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 1000 M Sensor Size 1/3 inch Remote Control With Remote Control Thermal Lens Detection Distance Human: 4.2km, Vehicle: 12km Visible Light Lens Detection Distance 8km Thermal Lens Focal Length 30~150mm,5X Optical Zooming Thermal Detector Type Uncooled Microbolometer Focal Plane Array(Vox) HD Camera Focal Length 12.5~750mm HD Camera Sensor CMOS Video Resolution 1080P F Value F1.0~F1.2 Thermal Lens Control Electric Zooming, Electric Focusing (Auto Focusing Pantilt Preset 255 Total Pixels 2.1MP Lens Aperture F1.6~3.5 Coding Mode H.264/MPEG/Mjpeg Subtitle Overlay Station Logo, Date, Time Transport Package Wooden and Carton Case Specification 240mmx374mmx243mm Trademark CZVZ Origin China Production Capacity 100 Units / Month

Packaging & Delivery

Package Size 54.00cm * 18.00cm * 39.00cm Package Gross Weight 60.000kg

Product Description

Surveillance 12km CMOS Long Range Electro Optical Infrared PTZ Thermal Imager IP Analog Camera System Product Description



Product Features:   > Adopting continuous zoom thermal imaging technology, it has a strong ability to penetrate fog and detect target in the distance. It can not only search in a wide range, but also can observe target in close range. > Day and night 2 megapixels low illuminance color camera, cooperated with thermal imaging camera, realizes day and night continuous monitoring > Multi-position intelligent identification autofocus technology enables fast focusing through multiple focus modes and trigger modes. > The control software of the front-end equipment can realize online upgrade function through the network, which greatly facilitates the post-maintenance  > PTZ with maintenance window, circuit board plug-in design, can quickly replace the circuit board without removing the shell > PTZ re-powered, PTZ self-test can return to the user's own zero or power off position, support remote restart function > Universal variable speed PTZ, which achieves all-round blind-free monitoring and achieves high-precision positioning > Professional design shell, beautiful, light, strong, anti-high-temperature, corrosion resistance, waterproof, anti-acid-rain Specifications:    Operating distanceVisible light8000mThermal imagingobjecthuman(1.8m×0.5m)Vehicle(2.4m×2.4m)Detection distance4200m12000mRecognition distance1050m3000mIdentification distance520m1500mHD lensLens12.5~750mmFOV0.6°~35°Aperture TypeAuto ApertureFocusManual/AutoCamera and video codingSensor type1/1.8" Progressive Scan CMOSTotal pixels2.1MPCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchPenetrate fogOn/Off optionalPost-focusingSupport, Remote-testCoding formatH.265/H.264/MJPEGNoise reduction3D Digital noise reductionVideo resolution1920x1080, three stream supportedVideo frame rate50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720)Image adjustmentbrightness, contrast ratio, saturationInfrared lensFocal length30~150mm,5× optical zoomingFOV4.2°x3.1°~20.6°x15.5°F valueF1.0~F1.2Lens controlelectric zooming, electric focusing (auto focusing optional)DetectorDetector typeUncooled microbolometer focal plane array(VOx)Effective pixels384×288/640x512Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan-tiltCarrying capacity50kg (top load)AngleHorizontal 360°continuous rotation, pitching -45°~+45°SpeedHorizontal 001°~20°/s, pitching 0.1°~10°/sPreset bits255Cruising2 paths,64 bits each pathAuto-scan1 pathInterfacePower supply interfaceDC30VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supply90VAC~305VAC to DC30V water proof power supplyWhole machine power consumption≤130WPhysical featuresWhole machine weight≤55kgDimension712×385×583(L×W×H)mmInstallation methodOutdoor pedestal mounting            Gradienter                                                       Nitrogen Inlet                                              Nitrogen outlet Packaging & Shipping



  Package&Shipment:   Wooden / carton package means will be supplied to ensure the transport safety.   FAQ



  FAQ: 1. Q: Is your company manufacturer?           Yes, CZVZ is the thermal camera and laser camera manufacturer since year 2004. 2. Q: Can you supply OEM service?          Yes, CZVZ can do OEM products as customer's requirement. 3. Q: What is the product's lead time?          It is confirmed by the order quantity. 4. Q: What is the warranty?          It is generally 1 year warranty, extend warranty is available. 5. Q: How will the product be shipped?          For sample order, it will be shipped by DHL, FEDEX, UPS or TNT.          For bulk order, we can arrange the shipment as customer requirement. 6. Q: How about your after sale service?          Any problem about our product, you can contact with us at any time. Our team will supply technical service for you.   Company Profile



Company Introduction: CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability.The company photo:  The exhibition:   Certificate:
