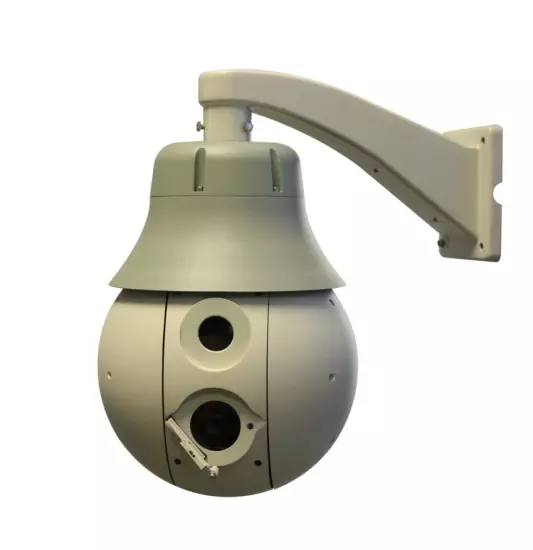

12 Years Manufacturer Outdoor Laser Dome Camera (HDLV311)

Model NO. SHR-HDLV311 Sensor CMOS HDMI Format 1080P Horizontal Resolution 600tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 300m Night Vision, 600m Day Vision Sensor Size 1/2.8′′ Remote Control With Remote Control Night Vision Distance 300m Day Vision Distance 600m Pixel 2.1 MP Daylight Lens Focal Length F=4.7-94mm, 20X Optical Zoom Mininum Illumination 0.05lux (Color), 0.01lux (Black and White) Laser Illuminator Power 3.5W Laser Wavelength 810nm Dome Pan-Tilt Material Aluminum Alloy Housing IP Control or Not IP Control Protection Degree IP66 Transport Package Carton / Wooden Case Specification 404mm x 280mm x 280mm Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

1 Application  Safe city project, mining surveillance, railway surveillance and other outdoor surveillance etc.     Monitoring DistanceNight Vision300 metersDay Vision600 metersVisible Light Camera Sensor1/2.8" Progressive Scan CMOSPixel2.1MPLens Focal Lengthf=4.7-94mm, 20x optical zoomF ValueF1.6-4.4Minimum Illumination0.05Lux (color), 0.01Lux (black and white)Electronic Shutter Speed1/1s - 1/30,000sCamera ControlAGC, AWB, Automatic Backlight Compensation, manual and auto day /night switch, WDR, electronic fog penetratingVideo CodingFormatH.264Video Resolution1920x1080Bitrate64Kbps - 4MbpsFrame Rate1-25fps (50HZ), 1-30fps (60HZ)Subtitle OverlayStation caption, date, timeImage ProcessingBrightness, contrast, saturationProtocolTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE,  SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (optional SIP, SRTP)Laser Illuminator Power3.5WWavelength810nmIlluminating Angle0.7°-50° synchronous continuous adjustmentEven LightLCMM even light technologyPan-tilt AnglePan 360°, tilt -5° to +90°SpeedPan 0°-180°/s , tilt 0°-120°/sPreset256Cruising Paths6 cruising paths, each path can set 20 presetsMaterialAluminum alloy housingInterfaceInternet Interface1×10Base-T/100Base-TX, RJ45 interfacePower Interface1×DC 24V socket for external power adapterAudio Interface1×Line In, 1×Line OutAlarm Interface1 switch input, 1 switch outputEnvironmental IndicatorsOperation Temperature-40ºC to +55ºCStorage Temperature-40ºC to +65 ºCProtection GradeIP66Power Power SupplyDC 24V±5% /2.5A, waterproof AC110V/220V-DC24V power adapterPower Consumption≤60WPhysical Indicators Dimensions404mm×280mm×280mmWeight≤8Kg
