12 Port Fiber Optic Terminal Box, LC/Sc Simplex Port for FTTH Access

Model NO. GF9-63 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Multicore Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material ABS OEM Yes MOQ 50 Samll Order Accepted Sample Free of Cost Delivery Time as Per The Order Packing Customized Adapter Type Sc/LC Fiber Type Sm/mm/Om3/Om4 Transport Package Neutral Trademark CZVZ Origin China HS Code 85447000

Product Description

Product Description

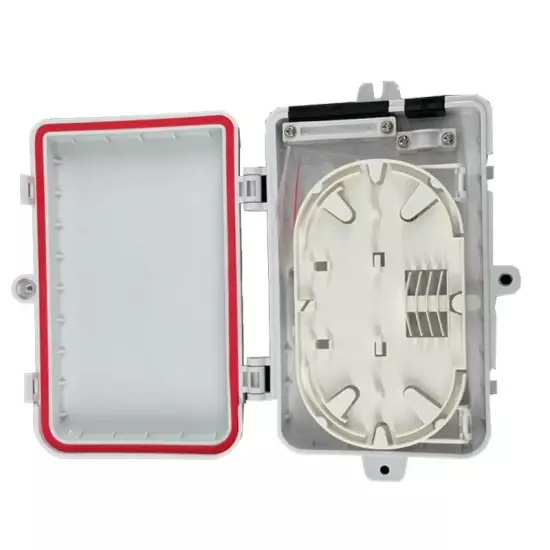

CZVZ FTTx Terminal box is designed for the increasing amount of Passive Optical LAN and FTTX applications such as Fiber to the Home or Fiber to the Desk, requiring the high-speed connections provided by Optical Fiber. It can provide flexibility by having some options, coming either unloaded, with simplex or duplex adapters, It is used for splicing and termination between indoor fiber optic cable and pigtails with SC or LC duplex type. It is suitable for FTTH optical fiber access and is made of high-density ABS.

Features

|   Low insertion loss |   Low Polarization Dependent Loss |   Excellent Environmental Stability |   Excellent Mechanical Stability |   Suitable for 3.1 x 2.0mm drop cable or patch cable |   Telcordia GR-1209-CORE-2001 |   Telcordia GR-1221-CORE-1999 |   RoHS

  Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data communications Networks |   Local Area Networks

Product Parameters   Product CZVZ FTTx Terminal BoxNo. of Port6 6 Capacity12 coreMounting WayWall Mounted MaterialHigh Density ABSFiber SpoolYesType of CableSM Or MMType of AdapterSC Simplex or LC Duplex AdapterSC/APC or SC/UPC or LC/APC or LC/UPCLoaded PigtailAs per your requirement or UnloadedDimension86 mm x 24mm x 86mmColorWhiteOperating Temperature-40°C to +70°CStorage Temperature-40°C to +70°CNet Weight50gPacking1PC/inner Box   More Products
