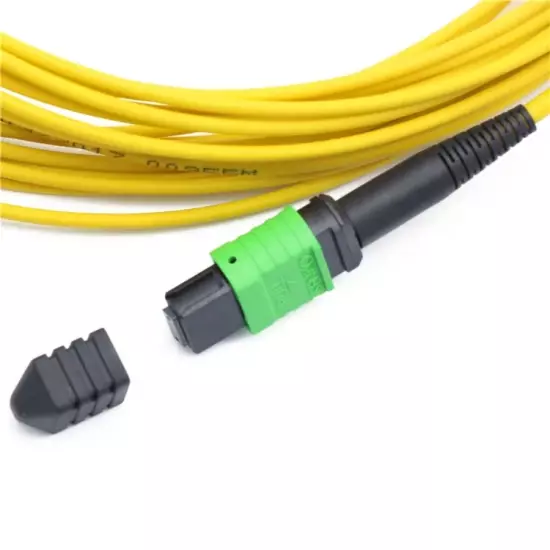

12 Fibers Type B Om3 MPO - MPO Patch Cord Cable Female/Female LSZH FTTH MPO to MPO Optical Fiber Patch Cord

Model NO. G279-2M12 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core 12 Core Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material LSZH MOQ 1 OEM Yes Samll Order Accepted Sample Accepted Delivery Time 1-3 Working Days Insertion Loss <0.2dB Return Loss ≤0.5 (Standard) ; ≤0.35 (Low Loss) Packing Customized Transport Package CZVZ Bag Trademark CZVZ Origin China HS Code 85447000

Product Description



Product Description

CZVZ MTP/MPO patch cable is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles  with  a cost-effective alternative to time-consuming field termination. This MPO/MTP fiber cable is ready for deployment in any multimode 50/125 MTP/MPO network. OM4 is fully backward-compatible with existing OM2 or OM1 systems. IWith US Conec MTP connectors, it is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.



Features

|   Optical Multimode (OM4) fiber supporting 2000 MHz.km EMB at 850 nm. |  10 Gigabit transfers up to 300 meters using 850 nm VCSEL source |   MTP Connector:Female |   Maximum Connector Loss: 0.50 dB |   Typical Connector Loss: 0.30 dB |   Typical Return Loss: -25 dB |   Buffer Material: PVC |   Buffer OD: 900 µm |  Jacket Material: LSZH  or PVC (OFNR riser-rated) |   Cable OD: 3.0mm |   Installation Tensile Load: 100 N (445 lbs) |   Long-Term Tensile Load: 50 N (222 lbs) |   Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant |   10G Fiber Channel Compliant |   40G and 100G IEEE 802.3

Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data Center Networks |   Local Area Networks

Product Parameters

Item

Parameter

Fiber Count

12 cores  (8 Core,24 Cores available)

Fiber Mode

SM 9/125um (OM1,OM3,OM4 available)

Connector Type

MPO-MPO

Polishing

UPC

Jacket

LSZH(Low Smoke Zero Halogen)

PVC(OFNR) option

Polarity

Type B (Type A, Type C available)

Cable Diameter

3.0mm

Attenuation(dB/km)

Multimode: ≤3.5 at 850nm, ≤1.0 at 1300nm

Insertion Loss(dB)

≤0.75 (Standard) ; ≤0.35 (Low Loss)

Transmission Distance

300m at 10G

Installation (Loaded)

Minimum Bend Radius 5.0cm (1.97in)

Crush Resistance

750 N/cm

Impact Resistance

1,000 cycles

Operating Temperature

-20°C to +70°C

Storage Temperature

-40°C to +85°C
