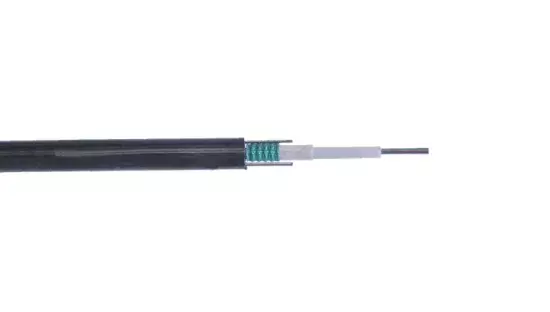

12, 24 Cores Outdoor Optical Fiber Cable, Central Loose Tube, GYXTW

Model NO. G1A9-512 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Multicore Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material PE OEM Yes MOQ 1000m Small Order Accepted Suitable Aerial, Duct Sample Available Transport Package Polywooden Drum Trademark CZVZ Origin China HS Code 85447000

Product Description



Product Description

CZVZ Fiber optic cable are designed for outside plant(OSP) applications and intended for use in communication network connects requiring cable to be installed within duct systems or lashed to aerial messenger wire structures. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical fiber. It is lightweight and reduced-diameter.

Features

|   Up to 24 cores |   Fiber code: GYXTW |   Central loose tube,armored design |   Light weight & Reduced-Diameter |   Single-Armored with Corrugated steel tape & parallel steel wire strength |   Good mechanical performance

Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data communications Networks |   Local Area Networks

Product Parameters    Fiber Count2-24 coresFiber Coloring4C:blue/orange/green/ natural 6C:blue/orange/green/brown/grey / natural8C:blue/orange/green/brown/grey / natural/red/black12C:blue/orange/green/brown/grey/natural/red/black/yellow/purple/pink/Aqua24C:same as 12C for one set of 12 colors and dots on another set of 12 colorsCentral Loose Tube MaterialPBTLoose Tube Diameter2-12 fiberFilling Filling compoundRipcords2ArmorCorrugated Steel TapeCable strength 2 parallel steel wireSheathPE Cable Diameter8.0-8.8mm

Fiber Type

Singlemode - G652.D

Wavelength

1310nm/1550nm

Attenuation(dB/km)

1310nm≤0.34

1383nm ≤0.34

1550nm ≤0.20

1625nm ≤0.24

Zero Dispersion Wavelength

1310-1324nm

Fiber Cutoff wavelength(nm)

≤1260

Cladding diameter(um)

125±1.0

Cladding material

SiO2

Cladding non-circularity(%)

≤1.0

Coating/cladding concertricity error(um)

≤12.0

Coating diameter(um)

245±7

Core diameter(um)

9±2.5

Core non-circularity(%)

≤6.0

Bending Diameter(mm)
