10km Long Range PTZ Night Vision Infrared Thermal Imaging Camera

Model NO. TIR185 Sensor CMOS HDMI Format 1080P Horizontal Resolution 480tvl Kind Autofocus Lens Certification CE, FCC, CCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC Effective Distance 6600m Sensor Size 1/3 inch Remote Control With Remote Control Thermal Lens 180mm Detection Distance 14km Recognition 3.6km Identification 1.8km Resolution 640/1280 Optional Zoom 5X Continuous Zooming Transport Package Wooden Case/Carton Specification IP66 Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 5000

Product Description

Features

1) Word originate 36~180mm 5x continuous zooming, can search in a wide range as well as identify target far. 2) 640×512 High resolution uncooled micro bolometer infrared focal plane arrays, vox 3) High sensitivity, NETD can reach 50mk and frame at 25Hz 4) Image noise reduction processing, add DDE function, output hot white/ hot black/pseudo color 5) Low power consumption, quick start-up, stable performance, image clearly with high uniformity 6) RS 485 interface control, analog video signal output 7) Simple operation, easy to use and maintenance

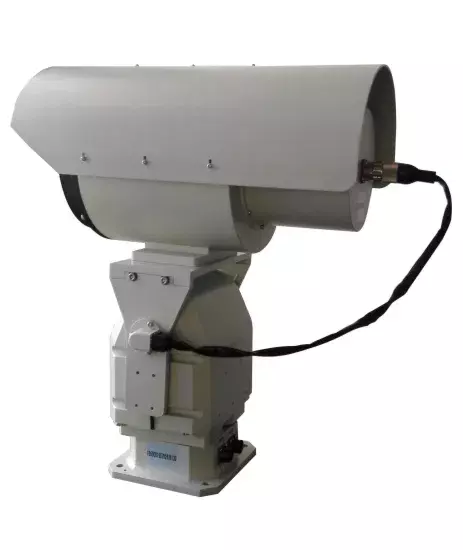

Detailed Photos

Product Parameters

SHR-DIR185A (640x512)Monitoring distanceObjectPeople(1.8m×0.5m)Car(2.3m×2.3m)Detection5100m14500mRecognition1260m3600mIdentification630m1800mThermal lensFocal length36~180mm 5x continuous zoomingFOV3.5°×2.8°~17.2°×13.8°F valueF1.0~1.2Lens controlE zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)Resolution640x512Spectrum8~14μmNETD≤[email protected],300KFrame25HzFFCAuto/Manual/SceneImaging processDDE, pseudo colrVideo outputPALInterfacePower supplyDC12VothersRS485,BNC video outputEnvironment indicatorsWorking temperature-25ºC~+55ºC(-40ºC~+55ºC)Storage temperature-40ºC~+65ºCInternational protectionIP66Power supplyPower DC12V(AC220V/DC12V power adapter is included)Consumption≤10WPhysical featuresSize440mm×213mm×217mm                                (L×W×H,contain sunshield cover)Weight≤7KgInstallationOutdoor base installation
