10/100m Fiber Optical Media Converter, Sc Duplex, 20km

Model NO. GM01-2220 Material Shape Square Allowed Lateral Pressure 100(N/100mm) Allowed Tensile Strength <100N Core Double Core Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material Metal OEM Yes MOQ 1 Samll Order Accepted Sample Provided Delivery Time as Per The Order Packing Customized Bandwidth 10/100m Fiber Type Sm Dual Fiber Transport Package Neutral Trademark CZVZ Origin China HS Code 85447000

Product Description



Product Description

CZVZ Unmanaged Fiber Optic Media Converter is specially designed to transmit and receive 10/100Mbps data over one optical fiber. It is for indoor application. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status. Compliant with IEEE802.3af, and IEEE802.3at standards. It is with 1 Port 10/100 Ethernet port and 1 port 100Mbps SC fiber port.

Features

|   Automatic MAC address learning and aging |   Automatically support IGMP (Multicasting) |   10/100Mbps Auto-negotiation, auto-MDI-MDI-X, Full/Half-duplex |   LED indicators for monitoring power/link/activity |   10/100Mbps-Supports |   Wall-mount and DIN-Rail installation for lightning protection |   Supports Daisy-Chain connection |   Supports Broadcast Storm Control Super lightening protection with IP40 |   Excellent heat elimination without cooling fan |   Redundant dual DC power inputs |   Redundant Power Inputs |   Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City

Application

|   Apply to Urban Intelligent Traffic |   Monitoring System (ITS), Safe City |   Fiber network system |   CCTV, Security

Product Parameters

Compliance

IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X) & 100BaseFX ;IEEE 802.3x for Flow Control; IEEE 802.1D-2004 for Spanning Tree Protocol ;IEEE 802.1w for Rapid STP; IEEE 802.1p for Class of Service ;IEEE 802.1Q for VLAN Tagging

Interface

Fiber Ports

1*100Base FX  SC or ST or FC Dual port,SM

RJ45 Ports

1*10/100Base TX Auto-negotiation , auto-MDI-MDI-X, Full/Half-duplex

LED Indicators

TX,FX LINK/ACT, POWER

Network Media

RJ45

CAT.5E or CAT.6 ≤100 meter

Fiber

Multi-mode

2KM

Single-mode

30KM

Properties

Wavelength

MM

850nm

SM

1310nm

1310nm

1550nm

Data Transferring Rate

10Mbps

100Mbps

14,880 pps

148,800 pps

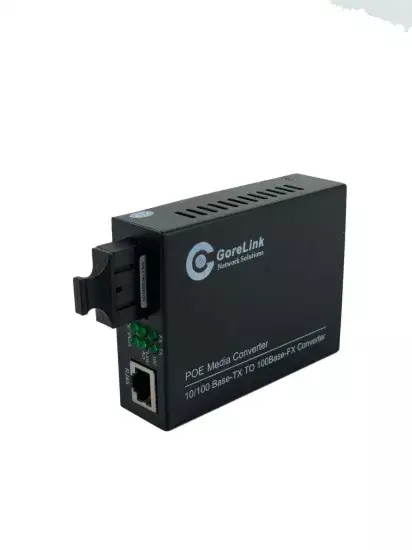

  Detailed Photos
